| Categories | Hollow Rotary Table |
|---|---|
| Brand Name: | Giant Precision |
| Model Number: | HRG Series |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | To Be Negotiated |
| Price: | To Be Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20000 Sets per Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Carton Box |
| Product: | HRG 200 Hollow Rotary Table |
| Output Platform Support: | Crossed Roller Bearing |
| Shift Motion: | 360°（Rotation at any Angle) |
| Matching Motor(Size): | Φ19-Φ70-Φ90-M6 |
| Reduction Ratio: | 10, 18 |
| Rated Output Torque: | 112NM |
| Max Acceleration Torque: | 201.6NM |
| Emergency Stop Torque: | 336NM |
| Operating temperature: | －10℃~90℃ |
| Level of Production: | IP65 |
| Level of Noise: | ≤65dB |
| Company Info. |
| Suzhou Giant Precision Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The hollow rotary platform is a mechanical device designed to provide precise rotational motion while allowing for the passage of cables, pipes, or other components through its center. This unique design offers several advantages, including improved versatility and convenience in various applications.
Base Frame:
The foundational support that houses all other components. It provides stability and rigidity to the entire assembly.
Rotating Disc:
The main platform that rotates around a central axis. It is where workpieces are mounted and is typically designed for high precision.
Hollow Center:
The central opening that allows for the passage of cables, pipes, or other components, enabling cleaner installations and easier routing.
Crossed Roller Bearings:
Precision bearings that support the rotating disc. Their configuration allows for high load capacity and rigidity, ensuring smooth rotation.
Drive Mechanism:
This includes the motor (usually a servo or stepper motor) and associated gearing (like helical gears) that provide the necessary torque and control for rotation.
Adjustable Clearance Mechanism:
A system that allows for the fine-tuning of the gap between gears to minimize backlash and enhance positioning accuracy.
Input Shaft and Flange:
Components that connect the motor to the platform. Customizable interfaces allow for compatibility with various motor brands and types.
Control Interface:
Electronic components or systems that manage the motor's operation, providing control over rotation speed, direction, and positioning.
Mounting Points:
Locations on the platform for securing workpieces or fixtures, ensuring stability during operation.
Performance Parameter
| HRG200-10K | ||||||
| Output Platform Support | Crossed Roller Bearing | Permissible Output Speed | 200rpm | Rotational Inertia | 27169x10-6 kg.m2 | |
| Shift Motion | 360°(Rotation at any Angle) | Repetitive Positioning Accuracy | ±15 arc sec | Positioning Accuracy | ≤30 arc sec | |
| Matching Motor(Size) | Φ19-Φ70-Φ90-M6 | Allowable Axial Load | 4000N | Lubrication | Synthetic Grease | |
| Reduction Ratio | 10 | Allowable Radial Load | 2500N | operating temperature | －10℃~90℃ | |
| Rated Output Torque | 112NM | Parallelism of Output Platform | 0.02mm | Service Life | 20000h | |
| Max Acceleration Torque | 201.6NM | Runout of Output Platform Surface | 0.01mm | Level of Production | IP65 | |
| Emergency Stop Torque | 336NM | Runout of Output Platform Excircle | 0.01mm | Level of Noise | ≤65dB | |
| HRG200-18K | ||||||
| Output Platform Support | Crossed Roller Bearing | Permissible Output Speed | 200rpm | Rotational Inertia | 27169x10-6 kg.m2 | |
| Shift Motion | 360°(Rotation at any Angle) | Repetitive Positioning Accuracy | ±15 arc sec | Positioning Accuracy | ≤30 arc sec | |
| Matching Motor(Size) | Φ19-Φ70-Φ90-M6 | Allowable Axial Load | 4000N | Lubrication | Synthetic Grease | |
| Reduction Ratio | 18 | Allowable Radial Load | 2500N | operating temperature | －10℃~90℃ | |
| Rated Output Torque | 85NM | Parallelism of Output Platform | 0.02mm | Service Life | 20000h | |
| Max Acceleration Torque | 153NM | Runout of Output Platform Surface | 0.01mm | Level of Production | IP65 | |
| Emergency Stop Torque | 680NM | Runout of Output Platform Excircle | 0.01mm | Level of Noise | ≤65dB | |

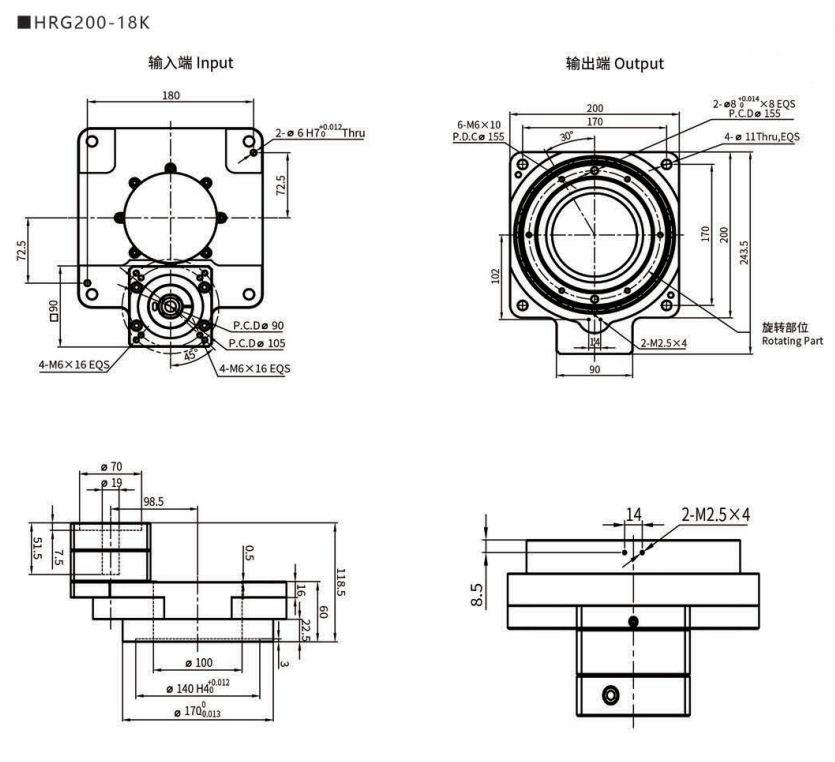

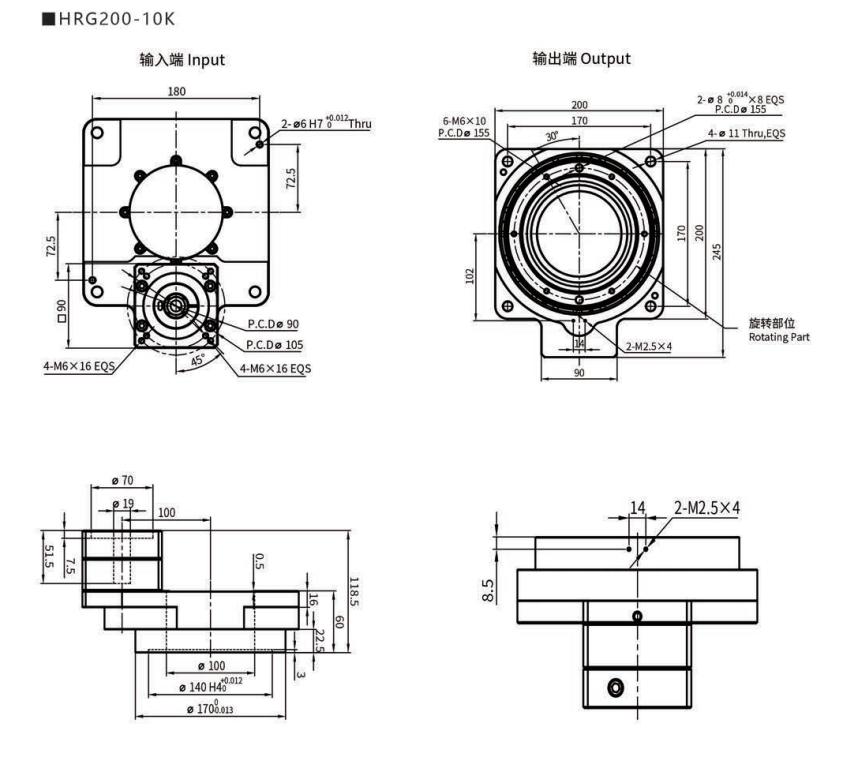

Drawings

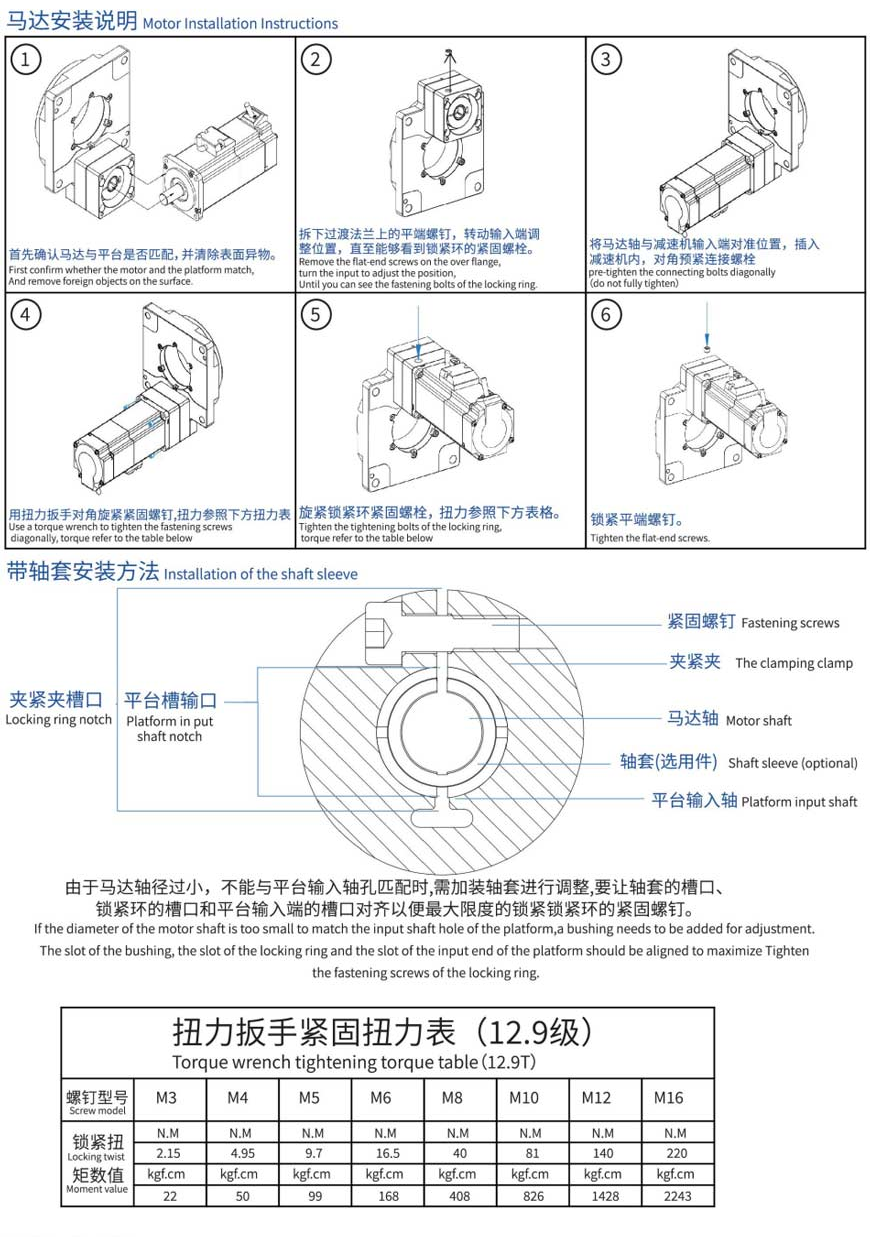

Installation instructions for Hollow Rotary Table
Applications of Hollow Rotary Platform
Robotics:
Used in robotic arms and manipulators for precise positioning and movement in assembly tasks and material handling.
Automation Systems:
Integrated into automated production lines for tasks such as sorting, packaging, and palletizing, where accurate rotational motion is essential.
CNC Machining:
Employed in CNC machines for precise rotation of workpieces during milling, drilling, and turning operations.
Medical Equipment:
Utilized in medical devices such as imaging systems, surgical robots, and laboratory automation for accurate positioning and movement.
Aerospace and Defense:
Applied in flight simulators, radar systems, and UAVs for precise orientation and stabilization.
Telecommunications:
Used in antenna positioning systems to ensure accurate alignment for optimal signal transmission.
Test and Measurement:
Integrated into testing equipment for rotating samples or components to evaluate performance under various conditions.
Entertainment and Media:
Utilized in camera rigs and lighting systems for smooth and controlled movement in film production and live events.
Industrial Equipment:
Applied in conveyors and sorting systems where rotational motion is needed for efficient material handling.
Research and Development:
Used in laboratories and research facilities for experimental setups requiring precise angular adjustments.
Packing and Shipping
|
