25 MPa Rated Pressure Tank Jacks for Chain Type Hydraulic Lifting Equipment

Categories Chain Type Hydraulic Jacks
Certification: CE, ISO 9001:2000
Model NO.: LYT
Max Height: 0-4600mm
Condition: New
Keywords: Tank Jacks
Rated Lifting Capacity: 300 Kn
Chain Stroke: 2700 mm
Rated Pressure: 25 MPa
Transport Package: Container
Specification: Steel
Trademark: WINCOO
Origin: China
HS Code: 8425421000
Supply Ability: 5000
After-sales Service: Remote Instruction
Warranty: 90 Days
Type: Hydraulic Jack
Structure: Hydraulic Jack
Capacity (Load): 12-120t
Power Source: Hydraulic
Customization: Available | Customized Request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

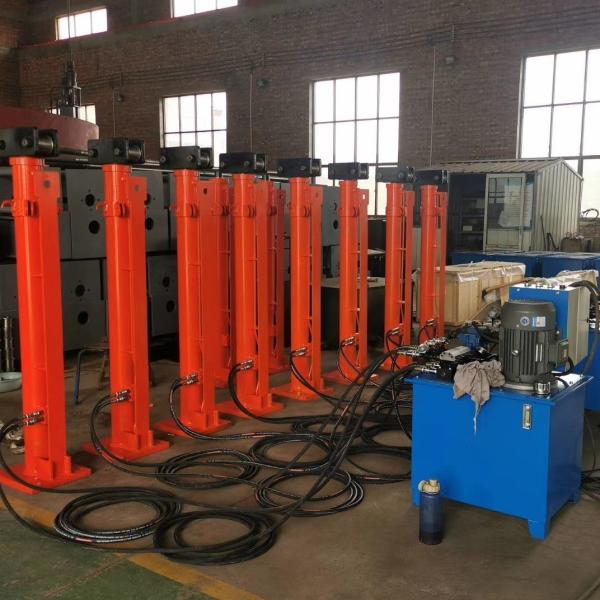

25 MPa Rated Pressure Tank Jacks for Chain Type Hydraulic Lifting Equipment

Hot Sale Chain Type Hydraulic Tank Lifting Jacks

Product Description

LYT-type hydraulic jacks is composed of one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain and oil way etc. Moveable pulley is used to enlarge chain stroke, i.e. traveling distance of the cylinder is 1/2 of lifting distance of the chain. It applies to inverted installation and construction of various large storage tanks (steel) and various storage tanks.

LYT-type chain-type hydraulic hoist includes the following models: LYT-120-2700, LYT-200-2700, and LYT-300-2700 etc. (those with special stroke need to be customized).Hot Sale Chain Type Hydraulic Tank Lifting JacksTechnical Parameter

1.Technical performance parameters of hydraulic pump station

ModelTank volumeRated pressureRated flowPowerControl voltage of solenoid valveMotor drive rate
YB-7.2220L(700*550*580)25Mpa7.2L/minThree-phase Four-wire (380V)220V5.5kw
YB-14.5340L(750*650*650)25Mpa14.5L/min220V7.5kw

2.Technical performance parameters of the hoist

ModelRated lifting capacity (KN)Hydraulic area (mm)Rated oil pressure (MPa)Piston stroke (mm)Chain stroke (mm)Cylinder safety equipmentReinforcement measures
LYT-120-2700120113042515002700Double-direction oil-way hydraulic lock2 adjustable pull rods
LYT-200-270020018859.62515002700
LYT-300-2700300254342515002700

Hot Sale Chain Type Hydraulic Tank Lifting Jacks1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
Hot Sale Chain Type Hydraulic Tank Lifting Jacks
Hot Sale Chain Type Hydraulic Tank Lifting Jacks
