Roasting Steel Plant Lime Rotary Kiln Bauxite Rotary Kiln Metallurgical

Roasting Steel Plant Lime Rotary Kiln Bauxite Rotary Kiln Metallurgical

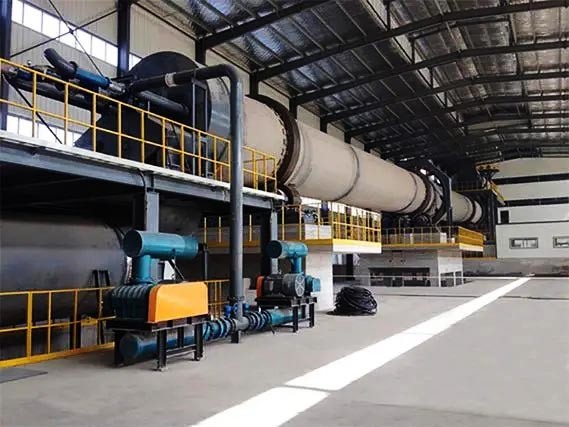

Introduction to rotary kiln
The application field of rotary kiln is wide. It mainly refers to process of calcining and conveying materials in the high-temperature rotating drum. The rotation of the rotary kiln is used to promote the stirring of materials in the kiln so that the materials are evenly heated. The materials produce different effects through high-temperature calcination in the kiln.

Rotary kiln parameters:

Type	Cylinderdiameter(mm)	CylinderLength(mm)	Rotating speed(r/min)	Slope(%)	Capacity(t/h)	Motor power(kw)	Weight(t)
TT-R1225	1200	25000	0.5-1.6	3	3	22	34
TT-R1632	1600	32000	0.2-0.3	3	3.5	22	46.8
TT-R1636	1600	36000	0.26-2.6	4	1.2-1.9	22	50
TT-R1828	1800	2800	0.5-1.5	3.5	4	30	58.6
TT-R1845	1800	45000	0.65-1.95	4	4.5	37	78
TT-R1939	1900	39000	0.31-2.83	4	1.6-3.4	37	70
TT-R2044	2000	44000	0.22-2.26	4	2.4-4	37	98.2
TT-R2245	2200	45000	0.23-2.25	3.5	3.2-5.3	45	125.5
TT-R2550	2500	50000	0.68-1.45	3.5	6.2-7.4	55	179.63
TT-R2555	2500	55000	0.79-2.38	3.5	7.3-9.8	55	191.18
TT-R2820	2800	20000	0.8-1.45	3	15-18	75	186.45
TT-R3028	3000	28000	0.8-1.45	4	18-23	75	180.72
TT-R3226	3200	26000	0.8-1.45	3.5	17-23	90	185.2
TT-R3255	3200	55000	0.1-1.52	4	22-27	110	271.58
TT-R3529	3500	29000	0.16-1.38	3.5	28-40	110	238.03
TT-R3560	3500	60000	0.65-2.25	4	28-40	125	347.87
TT-R4030	4000	30000	0.38-3.52	3.5	52-70	160	415.1

Product Tags:

rotary kiln for lime roasting

bauxite rotary kiln metallurgical

steel plant rotary kiln

Roasting Steel Plant Lime Rotary Kiln Bauxite Rotary Kiln Metallurgical

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	TONTEN MACHINERY LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Rotary Kiln
Brand Name:	TONTEN
Model Number:	TT-R1225
Place of Origin:	China
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	20 Sets per month
Delivery Time:	10-15 work days
Packaging Details:	standard international export packing, container, wooden box or as required
Capacity:	3t/h
Power consumption:	22kw
Cylinder diameter:	1200mm
Length:	25000mm
Speed:	0.5-1.6r/min
Slope:	3%
Machine weight:	35t
Name:	Rotary Kiln
