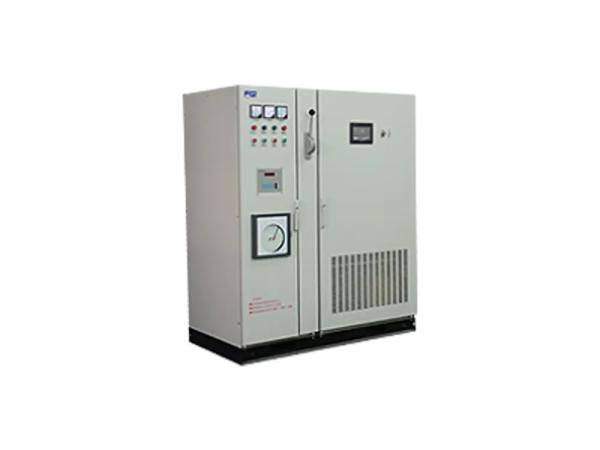

Vector Control Drives
|
| Place of Origin: |
China |
| Rated power voltage: |
3-phase 1140V, 2300V, 50-60Hz±5%, voltage imbalance rate <3% |
| Rated voltage: |
Maximum output voltage is the same as the input power supply voltage |
| Rated current: |
Continuous operation at 100% rated current |
| Overload capacity: |
150% rated current for 1 minute, 180% rated current for 2 seconds |
| Output frequency: |
0Hz ～ 600Hz ，can set |
| Control method: |
VVVF control with optimized PWM and standard PWM options, vector control, V/F control |
| Frequency resolution: |
Digital setting: 0.01Hz |
| Starting frequency: |
0Hz ～ 10Hz |
| Torque boost: |
Torque boost 0.0% ～ 20.0% |
| V/F waveform: |
Five modes: constant torque V/F curve, one mode of user-defined multi-segment V/F curve, and three modes of torque reduction characteristic curves (2.0 power, 1.7 power, and 1.3 power) |
| Acceleration and deceleration curve: |
Two modes: linear acceleration/deceleration and S-curve acceleration/deceleration; two types of acceleration/deceleration time, with a maximum time of 3000 seconds |
| DC braking: |
DC brake start frequency: 0-15.00Hz Brake time: 0-60.0 seconds Brake current: 0-150% |
| Multi-speed operation: |
Implement multi-segment speed operation through built-in PLC or control terminals |
| Automatic Voltage Regulation (AVR): |
Maintain a constant output voltage when the grid voltage changes by 10% |
| Automatic energy-saving operation: |
Automatically optimize the V/F (Voltage/Frequency) curve based on the load condition |
| Communication function: |
Equipped with an RS485 standard communication interface, supporting MODBUS |
| Operation order channel: |
LED keyboard, control terminals, serial port (RS485) |
| Frequency setting channel: |
LED keyboard, simulated potentiometer, LED keyboard with ▲ and ▼ keys,NO.assignment for function codes, serial port, UP/DOWN terminals, analog voltage/current, combined setting |
| Digital input channel: |
2 channels for start-stop control terminals, 6 channels for programmable digital inputs |
| Analog input channel: |
2 channels of analog signal input: 2 channels switchable between 0-10V and 0/4-20mA |
| Digital output channel: |
2 channels of open-collector output, 2 channels of relay output |
| Analog output channel: |
2 channels analog signal output: 2 channels switchable between 0-10V and 0/4-20mA |
| LED display: |
Can display or set inverter parameter |
| Protect function: |
It offers multiple protection functions, including short circuit, overcurrent, overload, underload, overvoltage, undervoltage, phase loss, overheating, external fault, PID feedback disconnection, and 485 disconnection protection functions |
| Optional accessories: |
Optional accessories Touch screen, control room |
| Application: |
Indoor, shielded from direct sunlight, free from dust, corrosive gases, oil mist, water vapor, etc. |
| Altitude: |
Below 1000 meters (operation at altitudes above 1000 meters may requirederating) |
| Environment tempreture: |
- 10℃~+ 40℃ |
| Humidity: |
Less than 90% relative humidity, no condensation |
| Vibration: |
Less than 5.9m/sec2（0.6G） |
| Storage tempreture: |
- 20℃~+ 60℃ |
| IP degree: |
IP20 |
| Cooling method: |
Forced air cooling |
| Installation method: |
Wall-mounted or floor-standing |
