Long Lasting Commercial Battery Storage Systems 215 Kwh

Categories Commercial Battery Storage Systems
Brand Name: Solarsonc
Model Number: CESS-GXY200
Certification: CE/TUV/UN38.3
Place of Origin: China
MOQ: 1 set
Supply Ability: 10 sets per month
Delivery Time: 30 working days
Name: 100KW commercial and industrial energy storage
Rated Battery Storage Capacity: 215KWH
Rated Power: 100KW
Charge-Discharge Ratio: 0.5C/25℃±2℃DC 500-900V
Rated Input Voltage: 768
Battery Type: LiFePo4 battery (LFP)
Battery Capacity: 280AH
Rated AC Power: 100KW
Rated AC Current: 150A
Rated AC Voltage: 380V
Harmonic Distortion: <3%
Protection Level: IP55
Communication: TCP/IP
Operating Temperature: -20~55℃
Operating Humidity: 0-95%
Cooling method: Air conditioning cooled
Altitude: <3000m
Dimension: 1750*1215*2340mm
Cycle Life: ≥6000 (25℃,0.5C,90%DOD,70%EOL)
Weight: 3Ton
Application: Commercial/Industrial
Installation: Indoor/Outdoor
Monitoring Software: Web-based
Safety Features: Overcharge protection, short circuit protection, thermal protection
Shippment: Please contact us for details
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

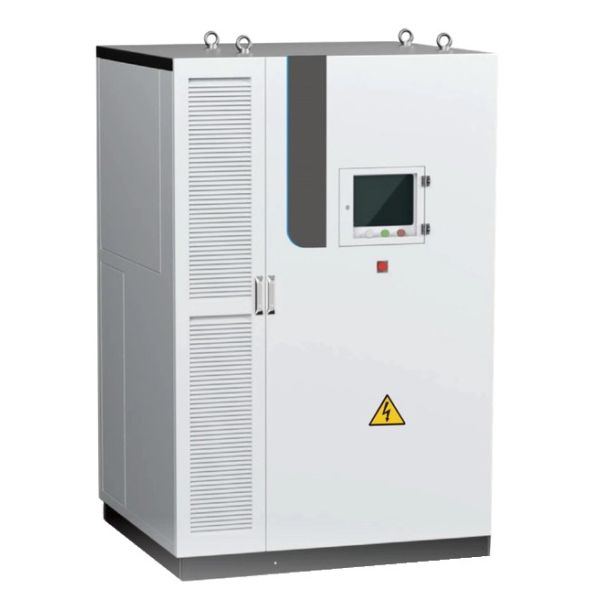

Long Lasting Commercial Battery Storage Systems 215 Kwh

100KW/200KWH commercial and industrial energy storage



System Data
Dimensions(W*D*H)1750*1215*2340
Weight3 tons
Operating Temperature-20℃~55℃
Protection ClassIP54
Altitude≤3000m
Humidity0~95%
System energy efficiency≥90%
Fire ExtinguishingPerfluoro
Cooling TypeAie Cooling
Anti-CorrosionC3
CertificatesCE/TUV/UN38.3
CommunicationTCP/IP
Noise Level≤75dB
Battery Data
Battery TypeLFP 280Ah
Rated Voltage768V
DC Scale600~864V
Rated Capacity215KWh
Rated Power100KW
Rated Current140A
Cycle Life≥6000 (@25℃,0.5C/0.5C,90%DOD,70%EOL)
Battery Efficiency95%
AC Data
AC mode3P/PE
AC Power100KW
AC Current150A
Power Factor-1~+1
Rated Voltage380V
Harmonic Distortion≤3%
Rated grid frequency50/60Hz


High Safety
Solarsonc LFP battery technology offers high performance, complete with a high standard battery management system (BMS) to ensures fault self-diagnosis and self-recovery.
Through the battery aging mechanism and safety warning algorithm, deeply excavate the evolution mechanism of the internal characteristics of the battery, and construct the multi-dimensional coupling relationship between the internal and external characteristics of the battery in the post-deterioration stage, thereby inferring the attenuation curve of the battery SOC and SOH, and judging the risk of internal short circuit in real time.
Intelligent Monitoring
The monitoring allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of energy storage system.
Intelligent operation and maintenance software that monitors the operation status of energy storage systems, manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.
High Efficiency and Low Cost
Air cooling, simultaneously improving battery life and system discharge, modular design, facilitating battery replacement and system expansion.
Intelligent temperature control, reduce system auxiliary power consumption, pre-installation design, convenient for the transportation of energy storage containers.




Brackets
Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel,Ground Screw Mounting, Adjustable Brackets, Solar Tracker
Installation Site
Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc
Installation Tools
Wire Cable Cutter & Stripper, Multi-Meter, Insulating gloves/covering etc
