Categories | Carbon Steel Sheets |
---|---|
Brand Name: | OEM/ODM |
Model Number: | DSQ, S275JR, IS 2041 R260, Q245 R, AH 36, DH36, EH36 |
Certification: | SGS, TUV, ISO, CE |
Place of Origin: | Mainland,China |
MOQ: | 1 Ton |
Price: | Price can be negotiated |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 Tons Per Month |
Delivery Time: | 7-20 working days |
Packaging Details: | Standard Shipping Packaging |
Application: | Construction, Shipbuilding, Machinery, etc. |
Edge: | Mill, Slit, Round |
Length: | 1000-12000mm |
Special Use: | High-strength Steel Plate |
Standard: | ASTM, JIS, GB, AISI, DIN, BS |
Surface Treatment: | Coated, Galvanized, etc. |
Technique: | Hot Rolled, Cold Rolled |
Thickness: | 0.2-4.0mm |
Tolerance: | ±0.02mm |
Width: | 1000-2000mm |
Company Info. |
Wuxi ShiLong Steel Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |

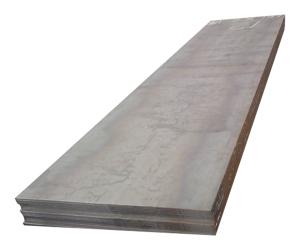

ASTM 1008 C45 Carbon Steel Plate Mild Steel Plate A36 Hot Rolled
Plate Exporter
C45 grade steel is a medium carbon steel offering moderate tensile
strengths. The
material is capable of through hardening by quenching and tempering
on limited sections
but can also be flame or induction hardened to Hrc 55. This grade
is most commonly supplied
in an untreated or normalised condition and is available in several
variations (denoted by additional letters)
which offer slight modifications of chemical composition.
Machinability similar to that of mild steel can be
expected, however weldability is reduced.
C45 EN 10083-2 Number:1.0503 | Comparisons of steel grades | |
---|---|---|
JIS G 4051 | S 45 C | |
DIN 17200 | C 45 | |
NFA 33-101 | AF65-C 45 | |
UNI 7846 | C 45 | |
BS 970 | 070 M 46 | |
UNE 36011 | C 45 k | |
SAE J 403-AISI | 1042/1045 |
Grade | C(%)min-max | Si(%)min-max | Mn(%)min-max | P(%)max | S(%)max | Cr(%)min-max |
---|---|---|---|---|---|---|
C45 | 0.42-0.50 | 0.15-0.35 | 0.50-0.80 | 0.025 | 0.025 | 0.20-0.40 |
Grade | Condition | Yield Strength R°(Mpa) | Tensile Strength Rm (Mpa) | Elon- gation A5(%) | Hardness HRC | Quenching Temperature (℃) | Benda- bility | Nominal Thickness,t 1.95mm≤t≤10.0mm | |
---|---|---|---|---|---|---|---|---|---|
Rolled | Annealed | ||||||||
C45 | Rolled Annealed Water-quenched Oil quenched | 460 330 | 750 540 2270 1980 | 18 30 | 58 55 | 820 860 | Min.reco-mmended Bending radius (≤90°) | 2.0 ×t | 1.0×t |
