Auto Transformer Winding Machine Supplier Discharge Rack Single Head Casting

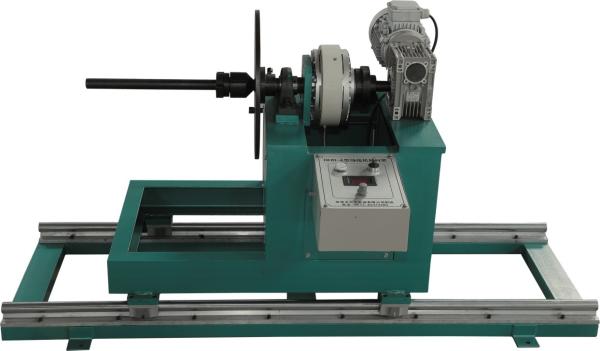

JC-4 Type Winding Machine Discharge Rack (single head) with Casting machine for Dry type transformers

Product Description

Purpose:

This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.
Model/Parameter: JC-800

Outer diameter of wire coil: ≤ 600mm

Axial height of coil: ≤ 800mm

Coil form: circular, oblong, elliptical, rectangular

Wire specification: enameled wire( Φ 0.3 to Φ 4mm), flat wire ≤ 3x12mm

Payoff rack: double ended flat wire and a set of round wires

Payoff frame material bearing shaft: Φ 36x450mm

Winding speed: 0-280r/min

Total power: 5KW
