| Categories | Stone Processing Equiments |
|---|---|
| Applicable Industries: | Other, Stone Industry |
| Showroom Location: | None |
| Condition: | New |
| Type: | Stone Cutting Machine |
| Use: | Stone block |
| Production Capacity: | High |
| Place of Origin: | Fujian, China |
| Brand Name: | LINSING |
| Voltage: | 380V/50Hz(According to the customer) |
| Power: | 55/75/90KW |
| Dimension(L*W*H): | 7500x4350x6500 |
| Weight: | 9000 kg |
| Warranty: | 1 Year |
| Key Selling Points: | High Productivity |
| Cutting thickness (max): | 800mm |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC |

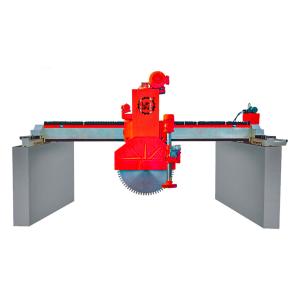

| Product name: | Horizontal plus vertical bridge saw machine |
| Function: | Fast cutting speed and high efficiency |
| Application: | Stone Marble Granite Quartz Sandstone |
| Keyword: | Stone block cutting machine |
| Usage: | Natural stone block |
| After Warranty Service: | Online |
| Control system: | PLC(imported Brand) |
| Color: | Red |
| Max Cutting Length: | 3800mm |
| Blade diameter: | D1200/1600mm |
| Packaging Details: | The inner packaging is plastic film and the outer packaging is frames. |
| Port: | Shanghai, Shenzhen, Ningbo, Xiamen, etc |
| Supply Ability: | 25 Set/Sets per Month Horizontal Plus Vertical Bridge Saw Cutting Machine |
| Price: | $32,000.00/sets 1-2 sets |
| Company Info. |
| Jiangxi Linxing Diamond Tools Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Features:
Horizontal plus vertical bridge saw machine adopts PLC programmable control system, man-machine integrated touch screen interface, supplemented by ultra-high precision rotary encoder positioning slice, left and right cutting speed control by inverter, adjust the speed by stone material, up and down using hydraulic Combined with chrome-plated guide pin + wear-resistant guide sleeve sliding up and down, with a small gap wear, and multi-layer seal design in the guide sleeve, waterproof and dustproof anti-spill, improve service life, automatically slice, blocks can be set directly on the ground, to save the cost of table and maintenance. High-speed movement parts are high-quality imported spare parts, so it has a high cutting efficiency, high-precision cutting, high stability, easy operation and flexible and etc., especially for high-value large-size granite , Marble slabs processing.
Product Specifications:
| Model | Unit | QSQ-1200 | QSQ-1600 |
| Max. diameter of blade | mm | 1200 | 1600 |
| Max. no. of blade | pc | 1 | 1 |
| Main motor power | KW | 55/75 | 90 |
| Max. vertical stroke | mm | 1350 | 1400 |
| Crossbeam length | mm | 7260 | 7260 |
| Max. cutting size(LxW) | mm | 3800x2100 | 3800x2500 |
| Diameter of horizontal blade | mm | 400-600 | 400-600 |
| Main motor power | kw | 11 | 15 |
| Vertical stroke | mm | 850 | 1100 |
| Dimensions (LxWxH) | mm | 7500x4350x6500 | 7500x5000x5500 |
| Water consumption | m³/h | 15 | 16 |
| Approximate weight | KG | 9000 | 13500 |
|
