Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line

Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line

Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line
Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line
Categories Filling Production Line
Condition: New
Type: Filling Machine
Machinery Capacity: 2400BPH
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Showroom Location: None
Application: Food, Beverage, Commodity, Chemical, Cosmetic
Packaging Type: Bottles, Barrel
Packaging Material: Plastic, Glass
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC220V/380V 50/60Hz
Place of Origin: Guangdong, China
Brand Name: Guanhong
Dimension(L*W*H): 4200*1400*2400mm
Weight: 1115 KG
Warranty: 1 Year
Key Selling Points: Automatic
Filling Material: Water, Oil, liquid, Liquid
Filling Accuracy: ±1%
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC
Quantity of filling head: 2 heads
Filling capacity: 100-1000ml 500-5000ml
Filling form: double head servo tracking type filling
Filling speed: about 40-50 bottles/min
Pressure: 0.6-0.8 MPa
Program control: Cotrust motion control system
Capping form: screw capping machine
Capping speed: about 10~35 bottles/min
Cap type: plastic/metal round cap,pump cap,duckbill cap
Marketing Type: Hot Product 2019
Packaging Details: wooden packing
Port: Guangzhou
Supply Ability: 20 Unit/Units per Month
Price: $29,800.00/sets 1-1 sets
MOQ: 1 set
Contact Now
Company Info.
Guangzhou Guanhong Machinery Equipment Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line

Recommend Products
Product Overview
Filling and capping production line process:

Put the bottle on the conveyor belt manually -- automatic filling -- put the pump head manually -- automatic capping

(Production line can be customized according to customer requirements)

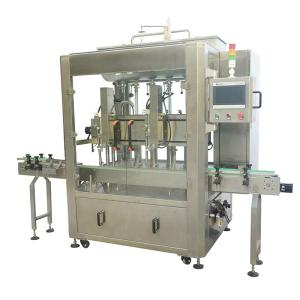

Double heads tracking type filling machine

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.

Key selling point

1. Motion control system + networking
2. Intelligent adjusting machine
3. High speed filling
4. Dive into filling
5. Accurate capacity
6. Exquisite appearance
7. Less space occupied
8. One-click cleaning
9. One-click alignment position






Automatic bottle screw capping machine


The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function,high degree of automation. Automatic capping for plastic metal round cap, pump caps, and duckbill caps. Applicable to medicine,food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in leakproof, anti-theft.

Technical parameters

1. Capping range: Φ10~φ55mm (can be customized according to requirements)
2. Bottle height: 50~300mm (can be customized according to requirements) 3. Capping speed: 10~35 bottles/min (Increasing capping heads can increase the speed)
4. Rated voltage: 220V 50Hz
5. Power: 1.1KW
6. Air pressure: 06~0.8MPa
7. Bottle cap type: plastic,metal round cap, pump head cap, duckbill cap, etc.




Specification
item
value
Condition
New
Voltage
AC220V/380V 50/60Hz
Place of Origin
China
Dimension(L*W*H)
4200*1400*2400mm
Weight
1115KG
Warranty
1 Year
Online support, Video technical support
Key Selling Points
Automatic
Machinery Capacity
2400BPH
Quantity of filling head
2 heads
Filling capacity
100-1000ml 500-5000ml
Filling form
double head servo tracking type filling
Filling accuracy
±1%
Pressure
0.6-0.8 MPa
Program control
Cotrust motion control system
Capping form
screw capping machine
Cap type
plastic/metal round cap,pump cap,duckbill cap


Matching equipment for production line

Bottle round table feeding turntable
Bottle washing machine
Drying machine
Aluminum foil sealing machine
Positioning labeling machine
Automatic vertical labeling machine
Automatoc single side labeling machine
Automatoc double sides labeling machine
Company Profile
Packaging & Delivery
Customer Photos
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
