| Categories | Pressure Gauge Calibrator |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | XY-60 |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1pcs per week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Carton |
| Name: | Calibration Standard Precision Pressure Gauge Calibrator Test Bench Machine |
| Accuracy: | based on gauge |
| Pressure port: | M20*1.5 |
| Range: | 0-60Mpa |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

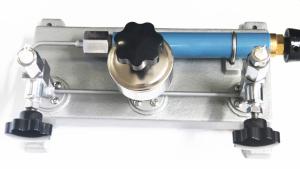

Calibration Standard Precision Pressure Gauge Calibrator Test Bench Machine
Description Calibration Standard Precision Pressure Gauge Calibrator Test Bench Machine
Pressure gauge calibrator also known as a pressure gauge calibration pump,The principle is movement of the piston rod increases pressure ,to achieve the aim of compression.
Pressure gauge calibration is used for testing general pressure
gauge, max calibration pressure can reach 60 MPA, vacuum calibration can reach -0.08 MPA.
In laboratory or measuring room generally matched with precision pressure gauge (accuracy can reach 0.25 ) to calibrate the general pressure gauge (accuracy is 1.6 or 2.5).
Parameter Calibration Standard Precision Pressure Gauge Calibrator Test Bench Machine
| Model number | range | medium |
| XY-6 | -0.082-6MPa | Transformer oil |
| XY-60 | 0-60MPa | Medicinal castor oil |
| Range | 0~6Mpa | 0~60Mpa |
| vacuum | -0.088~0 Mpa | ----- |
| connector | M20×1.5(M14×1.5) | M20×1.5(M14×1.5) |
The minimum adjustable range:0.1Mpa
Size:350*230*180mm
Weight:15kg
Application Calibration Standard Precision Pressure Gauge Calibrator Test Bench Machine
The minimum adjustable range:0.1Mpa
Size:350*230*180mm
Weight:15kg
|
