| Categories | EE Type Transformer |
|---|---|
| Brand Name: | xjsr |
| Model Number: | 40w |
| Certification: | RoHS,ISO9001-2001 |
| Place of Origin: | Guangdong,shenzhen |
| Coil Structure: | Toroidal |
| Coil Number: | Autotransformer |
| Material: | ferrite |
| Input Voltage: | 230VAC |
| Output Voltage: | 10V,17V,24V,30V |
| Power: | 80VA |
| Model: | EE55 EE14 EE16 EI22 ED8 EI66 EE8.3 EE10 EE12 EE15 EE19 EE20 EE22 EE25 EE29 EE42 EE44 EE48 PQ26 |
| Type: | EE EI PQ EFD EF |
| Company Info. |
| Shenzhen Xin Jie Si Rui Electronic Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

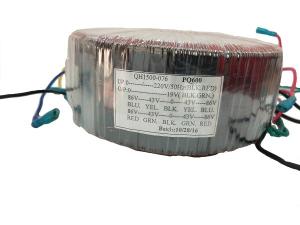

Product performance:
The iron core of the toroidal transformer is made of continuous continuous oriented silicon steel strips. After annealing, a highly consistent magnetic flux guidance will be formed. The pass density is higher because the toroidal transformer can achieve a high electrical efficiency of 95%.
Feature:
1. The high-efficiency iron core has no air gap, and the stacking factor can be as high as 95%.
2. Less vibration noise. The iron core has no air gap, which can reduce the noise of the induced vibration of the iron core. The windings evenly and tightly wrap the annular iron core, which effectively reduces the "hum" sound caused by magnetostriction.
3. Low operating temperature Because the iron loss can reach 1.1W/kg, the iron loss is very small, the temperature rise of the iron core is low, and the winding has a good heat dissipation on the iron core with a lower temperature, so the temperature rise of the transformer is low.
4. Easy to install The toroidal transformer has only one mounting screw in the center, which is especially easy to quickly install and disassemble in electronic equipment.
SHAPE PARAMETERS:
| Full Loading Powe | Product volume | Mounting plate | Hole distance | Pore size | Weight |
| 20W(MAX) | 70*25*35mm | 70*70mm | 60*60mm | 5*8mm | 0.53Kg |
| 40W(MAX) | 90*41*45mm | 90*90mm | 80*80mm | 5*8mm | 1.0Kg |
| 50W(MAX) | 95*41*45mm | 90*90mm | 80*80mm | 5*8mm | 1.1Kg |
| 70W(MAX) | 100*40*45mm | 90*90mm | 80*80mm | 5*8mm | 1.3Kg |
| 90W(MAX) | 103*40*43mm | 100*100mm | 90*90mm | 5*8mm | 1.47Kg |
| 120W(MAX) | 100*41*45mm | 90*90mm | 80*80mm | 5*8mm | 1.50Kg |
| 150W(MAX) | 98*38*51mm | 90*90mm | 80*80mm | 5*8mm | 2.05Kg |
| 200W(MAX) | 110*45*53mm | 100*100mm | 90*90mm | 5*8mm | 2.23Kg |
| 240W(MAX) | 113*47*54mm | 120*120mm | 110*110mm | 5*8mm | 2.5Kg |
| 300W(MAX) | 122*45*56mm | 120*120mm | 110*110mm | 5*8mm | 2.9Kg |
| 400W(MAX) | 134*46*66mm | 120*120mm | 110*110mm | 5*8mm | 4.1Kg |
| 500W(MAX) | 133*51*63mm | 140*140mm | 130*130mm | 5*8mm | 4.6Kg |
| 1000W(MAX) | 165*52*79mm | 160*160mm | 150*150mm | 5*8mm | 8.2Kg |
| 1200W(MAX) | 180*54*78mm | 180*180mm | 170*170mm | 5*8mm | 10.6Kg |
| 1500W(MAX) | 192*57*80mm | 180*180mm | 170*170mm | 5*8mm | 11.5Kg |
ELECTRICAL CHARACTERACRISTICS:
| Full Loading Powe | Input Voltage | Frequency | No Load Voltage | Full Loading Current | No Load iron los | Hi-Pot Test | Insulation Resistance |
| 20W(MAX) | AC220V±10% | 50Hz/60Hz | AC12.0V±2% | 1.66A(MAX) | ＜0.9W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 40W(MAX) | AC220V±10% | 50Hz/60Hz | AC12.5V±2% | 3.3A(MAX) | ＜2.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 50W(MAX) | AC230V±10% | 50Hz/60Hz | AC5-0-5V±2% | 5.0A(MAX) | ＜2.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 70W(MAX) | AC230V±10% | 50Hz/60Hz | AC14.5V±2% | 5.0A(MAX) | ＜3.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 90W(MAX) | AC220V±10% | 50Hz/60Hz | AC28+9+16V±2% | 2.1+1.7+1A(MAX) | ＜3.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 120W(MAX) | AC220V±10% | 50Hz/60Hz | AC0-20-80-100V+1V±2% | 6A(MAX) | ＜3.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 150W(MAX) | AC220V±10% | 50Hz/60Hz | AC22V±2% | 6.8A(MAX) | ＜3.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 200W(MAX) | AC220V±10% | 50Hz/60Hz | AC12V*2±2% | 8.4A(MAX) | ＜4.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 240W(MAX) | AC220V±10% | 50Hz/60Hz | AC24±2% | 10A(MAX) | ＜4.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 300W(MAX) | AC220V±10% | 50Hz/60Hz | AC24.5±2% | 12.5A(MAX) | ＜5.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 400W(MAX) | AC220V±10% | 50Hz/60Hz | AC70.5±2% | 5.7A(MAX) | ＜6.0W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 500W(MAX) | AC220V±10% | 50Hz/60Hz | AC36±2% | 13.9A(MAX) | ＜4.5W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 1000W(MAX) | AC240V±10% | 50Hz/60Hz | AC36.5±2% | 27.5A(MAX) | ＜10W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 1200W(MAX) | AC220V±10% | 50Hz/60Hz | AC45+36V±2% | 13.3+16.6A(MAX) | ＜12W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
| 1500W(MAX) | AC415V±10% | 50Hz/60Hz | AC48V±2% | 31.2A(MAX) | ＜20W | Pri-Sec:DC2500V | Pri-Sec:≥500MΩ |
|
