| Categories | PE Pipe Extrusion Line |
|---|---|
| Brand Name: | LB |
| Model Number: | LB |
| Certification: | CE / ISO |
| Place of Origin: | ZHANGJIAGANG |
| MOQ: | 1 SET |
| Price: | USD, RMB, EUR |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 15 SETS PER MONTH |
| Delivery Time: | Within 60 WORKING DAYS |
| Packaging Details: | NORMAL PACKAGE |
| Raw material: | PE granule and masterbatch |
| Automatic degree: | Full automatic |
| Pipe diameter: | 16mm-63mm |
| Output(kg/h):: | 250kg/h-300kg/h |
| Warranty: | 1 Year |
| Motor: | Siemens beide |
| Screw type: | Single screw extruder |
| Inverter: | Schnider |
| Voltage: | 380V 50Hz or customized |
| Coiler: | Double disk |
| Company Info. |
| Zhangjiagang Langbo Machinery Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

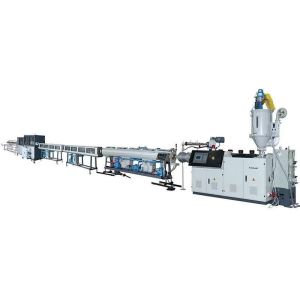

Water Supply 16-63mm HDPE Pipe Making Machine
PE PIPE PRODUCTION LINE
As the world developed, many country starts to invest more time and money on the infrastruction field. Therefore the water supply pipe has widely used in the whole world especially the african countries. We could see the 16-63mm PE pipe everywhere abroad. And many pipe industries are also producing this diameter pipe to satify the new demand. Our PE extrusion line has very high output capacity and high stability. It has a long working time and less stoping time. It wins many applauds by our customers. We hold the mind of long-term business and always provide good quality machine.
FEATURES OF PE PIPE EXTRUSION LINE:
The high efficiency extruder is designed for HDPE pipes, equipped with reducer which obtain the high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder
Co-extruder: manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three
Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/ Tipping chute
|
