| Categories | Heavy Cargo Trucks |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | US $40,000-50,000 / Unit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 UNITS PER WEEK |
| Delivery Time: | Within 35 days |
| Packaging Details: | NUDE |
| BRAND: | BEIBEN |
| MODEL: | 1634APZ |
| Wheel base: | 4800mm |
| Displacement: | 9.726L/Diesel |
| Driving type: | 6x4 |
| Emission: | EuroIII EGR |
Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis
Features:
Packaging Details
wax-coated on roro vessel for Beiben truck shipping
Delivery Time
Shipped in 30 days after payment
Specifications:
| Driving type | 4x4 | ||
| Dimension(Lx W x H)(unloaded)mm | 8826×2500×3385 | ||
| Inner dimension (mm) | 6500x2300x600 | ||
| Approaching angle/Departure angle(°) | 26/22 | ||
| Overhang(front/rear) (mm) | 1410/2616 | ||
| Wheel base (mm) | 4800 | ||
| Max speed (km/h) | 90 | ||
| Curb weight (kg) | 7960 | ||
| Engine | Model (WD615.38) | WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection | |
| Displacement (L) | 9.726/Diesel | ||
| Bore X stroke (mm) | 126/130 | ||
| Max power (kw/rpm) | 279/2200 (380HP) | ||
| Max torque (Nm/rpm) | 1500/1300-1600 | ||
| Emission | EURO II | ||
| Clutch | Model | Single dry frictional disc, hydraulic boosting | |
| Gearbox | Model | 9JS180, mechanism (1800N.m) 9gears, 1reverse gear, manual | |
| Brake system | Service brake | Double circulation air brake system | |
| Assistant brake | Engine exhaust brake | ||
| Park brake | Potential springs pressing on middle and rear wheels | ||
| Steering system | Model | ZF8098, whole circulation in ball, hydraulic booster | |
| Frame | Fish belly, shape, variable width, variable sections, side beam structure | ||
| Front axle | Double-shoe pneumatic brake, non-driving steering axle | ||
| Middle and Rear axle | Double-shoe pneumatic brake, casting, double reduction driving axle | ||
| Tyre | 12.00R20 | ||
| Electrical system | Battery | 2X12V/135Ah | |
| Generator | 28V-35A | ||
| Starter | 5.4Kw/24V | ||
| Cab | Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly | ||
Photo details:
Quality Inspection:
Service:
Pre-service:
After-sale service:

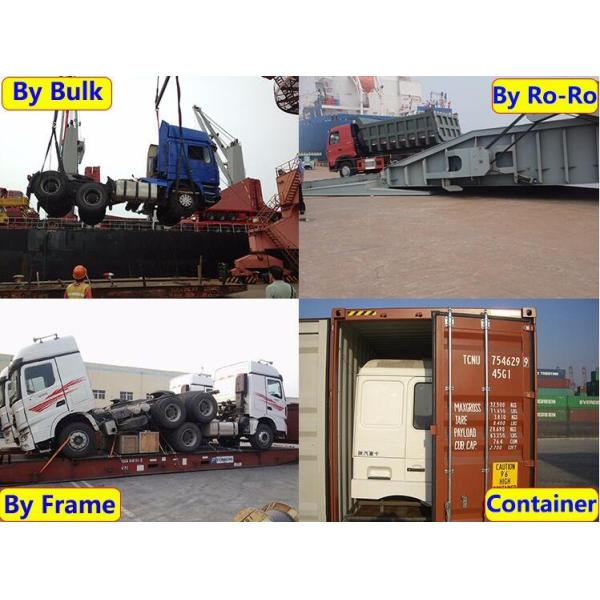

Shipping:
