3.5 Ton Lithium Battery Forklift 3-3.8 Tons Electric Forklift Crane Counterweight Electric Forklifts

3.5 Ton Lithium Battery Forklift 3-3.8tons Electric Forklift Crane Counterbalanced Forklift

Description:

Green environmental protection, zero emission, low noise;
Reliable structure: Longgong E series 3-3.8 ton internal combustion vehicle body is used, and the structure is firm and reliable
Excellent performance: the lifting/tilting, driving and climbing performance are exactly the same as those of internal combustion vehicles;
High-voltage control system: using 153.6V automotive-grade voltage, high reliability and low energy loss;
Strong battery life: standard 165Ah lithium battery, the battery life can reach 6-8 hours;
High charging efficiency: 10-100% power can be achieved, and it can be fully charged in 1.5 hours;
High protection level: integrated integrated electrical system, the protection level reaches IP65;
Wide field of view: The wide field of vision gantry of the internal combustion vehicle is used to improve the safety of stacking operations;
High degree of generalization: the commonality with Longgong E series 3-3.8 tons internal combustion vehicle parts is as high as 95%;

Specification:

model		unit	CPD-35EWL
Rated load		Kg	3500
Load center distance		mm	500
Maximum lift height		mm	3000
free lift height		mm	170
Fork size		mm	1070×125×50
Gantry inclination (front/rear)		deg	6-12
Dimensions	Overall length (to fork back)	mm	2830
	Overall width	mm	1240
	Safety rack height	mm	2130
Minimum turning radius		mm	2540
front overhang		mm	493
Track (front wheel)		mm	1000
Wheelbase (rear wheel)		mm	980
Minimum ground clearance		mm	130
wheelbase		mm	1760
Minimum right angle stacking channel width		mm	4260
speed	Walking (empty/full)	Km/h	20/20 (Power Mode)
			15/15 (standard mode)
			10/10 (energy saving mode)
	Lifting (no load/full load)	mm/s	420/400
	Descent (no load/full load)	mm/s	≥300/≤600
	Tilt (no load/full load)	°/s	‘8/8
Maximum grade (no load/full load)		%	20/20
dead weight		Kg	4520
Travel motor		Kw	18
Lifting motor		Kw	20

battery		V/Ah	153.6/230
Working tank capacity		L	60
work pressure		Mpa	18.5

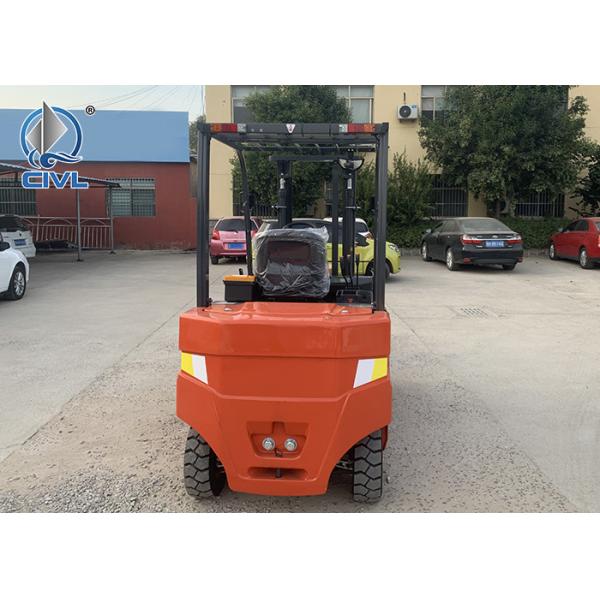

Photos:

Application:

Counterweight electric forklifts are suitable for loading, unloading, stacking and handling of finished goods within the port, station and enterprise counterbalance forklift industry.
Forklifts up to 3 tons can also work in cabins, train cars and containers.
After the fork is replaced with various attachments, the counterbalanced electric forklift can handle a variety of goods, such as changing the bucket to handle bulk materials.

We have balanced heavy duty forklifts:

1.5 tons, 1.8 tons, 2.0 tons, 2.5 tons, 3.0 tons, 3.5 tons, 4 tons, 4.5 tons, 5 tons, 6 tons, 7 tons, 8 tons, 10 tons,etc.
