Mini OV7670 DVP Camera Module Vga Camera Module With DVP 24 Pin Interface

Categories DVP Camera Module
Brand Name: SINCERE FIRST
Model Number: SF-FV76703
Certification: CE, FCC, RoHS, REACH, ISO
Place of Origin: Guangdong , China
MOQ: 5 pcs
Price: Negotiable
Payment Terms: L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability: 350000 pcs / month
Delivery Time: 7 - 15 Work Days
Packaging Details: Package, Carton Box
Sensor: OV7670
Interface: 24 pin
Lens Size: 1/6inch
F Number: 2.8
View Angle: D:28.7° / H:22.6°
Distortion: <1%
Array Size: 640*480
Pixel Size: 3.6 um * 3.6 um
Maximum Image Transfer Rate: 640×480@30fps
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

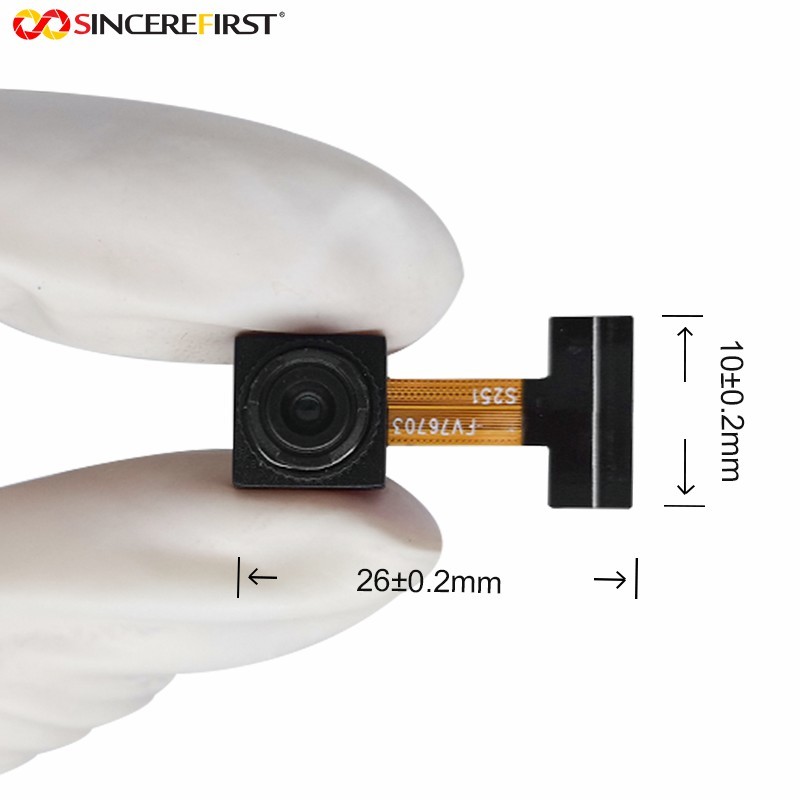

Mini OV7670 DVP Camera Module Vga Camera Module With DVP 24 Pin Interface

Mini OV7670 CMOS VGA Compact Camera Module With DVP 24 Pin Interface


Specificaitons


Image SensorOV7670
Array Size640 x 480 (VGA)
Image Sensor FormatType 1/6″
Transfer Rate30fps
View AngleD=28.7°, H=22.6°
Lens TypeFixed focus
InterfaceDVP
F.NO2.8
Distortion<1%
Analog2.45V to 3.0V

Description


This CCM (compact camera module) based on an OV7670 sensor, constructed with a high quality stock lens and DVP with 24 pin interface.
It has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface.


Features


◆This 0.3MP mini Compact Camera Module is based on the low voltage CMOS image sensor OV7670, which provides the full functionality of a single-chip VGA camera and image processor.
◆The maximum framerate of 30fps at VGA resolutions with complete user control over image quality, formatting and output data transfer through the Serial Camera Control Bus (SCCB).
◆Resolution: 640 x 480 (VGA); Maximum Image Transfer Rate: 30fps@VGA; Output Format(8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
◆Lens SPEC: Stock lens; 45 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than 1% distortion.
◆Recommended for electronic lovers, this CCM is compatible with Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA, and other MCU platforms.


Applicaitons


Visitor Monitoring System
Surveillance System
Attendance System
Facial Recognition
Document Scanning
Obstacle Avoidance
