| Categories | Insert Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | Phone Case |
| Certification: | ISO 9001:2015 |
| Place of Origin: | Vietnam |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 180 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 400 X 450 X 426 |
| IMM Tonnage: | 140T |
| Mold Weight: | 470kg |
| Runner: | Cold runner |
| Mould life: | ≥500000 shots |
| Design software: | 3D:UG 4.0, 2D:CAD |
| Mold base: | Custom mold base |
| Gate type: | Side gate |
Transparent middle frame (1*1)
No.22448-B
| Firstly, this mold is designed with a reasonable structure that ensures uniform pressure distribution and minimizes stress concentration. It is meticulously crafted from clean steel, with a hardened cavity and core, resulting in exceptional hardness and anti-wearing performance. The tool life of this mold is impressive, lasting up to 5-10 years or 50,000 shots. |
| Secondly, this mold features a custom mold base, ensuring a tailored fit for specific requirements. It is a three-plates mold with a side gate, allowing for efficient and precise injection molding processes. The mold adheres to the LKM mold standard, guaranteeing high quality and reliability. With dimensions of 400mm in length, 450mm in width, and 426mm in height, and a net weight of 470kg, this mold stands as a substantial and robust tool. |
| Lastly, the mold boasts a polished surface finish, meeting the stringent SPI-A1 standards. It utilizes a cold runner injection/runner type, ensuring efficient material flow and minimizing waste. Notably, it is designed with 4 slides (cylinders) and the cavity and core hardness exceed 50HRC, guaranteeing precision and durability. This mold is specifically designed for injection molding with TPE material, with an injection part size of 150.4mm in length, 78.5mm in width, and 11.8mm in height. The injection part weighs 10g, making it suitable for various applications. |

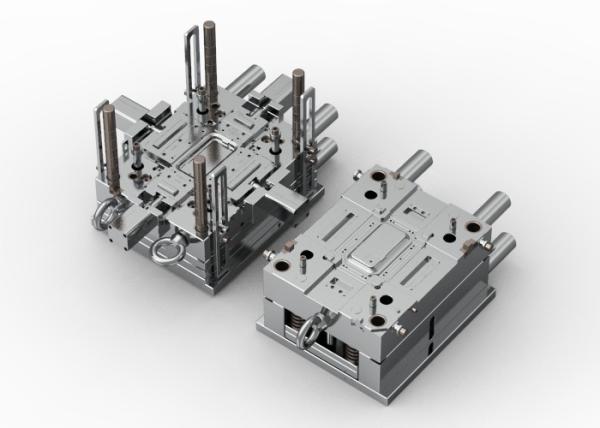

Display diagram
|
Middle frame (1*1) / Cold runner / Three-plates mold No.22448
OEM / ODM Insert Injection Molding Middle Frame (1*1) No.22448-C
OEM / ODM ： Insert Injection Molding & Three-proof Phone Housing (1*2) No.23689
Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
OEM / ODM ： Insert Injection Molding & Middle Frame (1*1) No.22448-B
Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399
Transparent Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774
Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448
OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C
