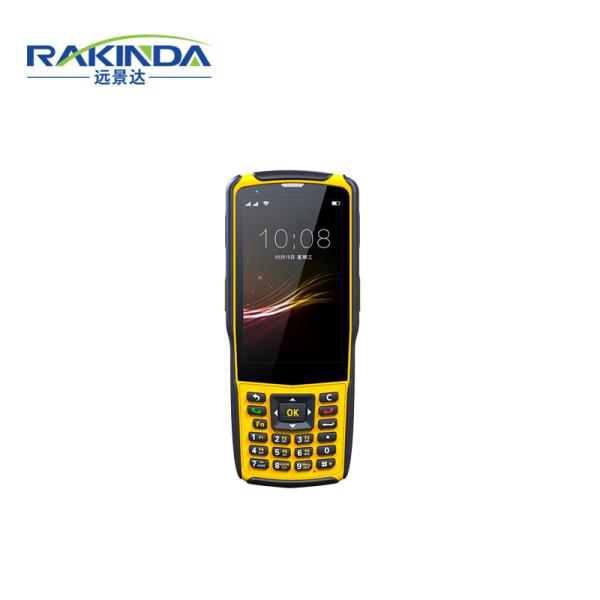

| Sign In | Join Free | My chinacomputerparts.com |
 |
| Categories | Intelligent Scanner Devices |
|---|---|
| Brand Name: | Rakinda |
| Model Number: | S5 |
| Certification: | CE CCC |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | negotiation |
| Supply Ability: | 100 pcs per week |
| Delivery Time: | 1-3 work days |
| Packaging Details: | packing in carton |
| Dimensions: | 172mm*72mm*24.8mm |
| Operating System: | Android 5.1/Android 7.0 |
| Weight: | 320g |
| IP: | IP 67, 1.5m drop |
| interface: | Micro USB +Charging cradle interface, 3.5mm audio |
| Battery: | 4000mAh |
| Memory: | RAM: 1GB/2GB; ROM: 8GB/16GB |
| 4G full Net: | GSM (Band 3/8) WCDMA (Band 1/8) CDMA1X, EVDO (Band BC0) TD-SCDMA (Band 34/39) FDD-LTE (Band 1/3/7/17) TDD-LTE (Band 38/39/40/41) |
| Barcode scanner: | 2D |
gps barcode reader inventory handheld oem phone accessories industrial pda
1. 4G Full Netcom PDA
2. 4G full Netcom, dual sim option
3. IP67 Industrial Design
4. Multi-functions to meet various application

| Physical | Model | S5 |
| Dimensions | 172mm*72mm*24.8mm | |
| Weight | 320g | |
| Keypad | Key sides: power key, Volume key, left-scan key, right-scan key, and one of the scan key same as PTT key; front: number keys, five-navigation key, dial key, hang off key, back key, enter key, self definitions key (Fn) | |
| Input | English, pinyin, handwriting, soft-keyboard | |
| Performance | Operating System | Android 5.1/Android 7.0 |
| CPU | Quad core 1.45Ghz | |
| Screen | 4 inch WVGA | |
| Touch | Capacitive Touch | |
| Memory | RAM: 1GB/2GB; ROM: 8GB/16GB | |
| Data Collecting | 1D Barcode | Mainstream 1D code, such as Codabar, code 39, code 128, Interleaved 2 of 5, UPC, EAN, MSI etc. |
| 2D Barcode (optional) | Mainsteam 2D code, such as qr, PDF417, DataMatrix, Maxicode etc. | |
| NFC (optional) | Frequency: 13.56Mhz RFID Protocol: ISO14443A/B, ISO15693, ISO18000-3, Mifare, Felica RF, Kovio, NFC Forum Type 1-4 Tag | |
| Communications | 4G full Net | GSM (Band 3/8) WCDMA (Band 1/8) CDMA1X, EVDO (Band BC0) TD-SCDMA (Band 34/39) FDD-LTE (Band 1/3/7/17) TDD-LTE (Band 38/39/40/41) |
| WIFI | 802.11 a/b/g/n (2.4GHz/5GHz) | |
| Bluetooth | BT V4.0, BT 3.0+HS, V2.1+EDR | |
| Expansion | Camera | 8-mega pixel camera, auto focus, LED light source |
| GPS | GPS supports A-GPS and Beidou | |
| Battery | Capacity | 4000mAh |
| Expected Battery Life (Talking) | 18 hours | |
| Expected Battery Life (Standby) | 500 hours | |
| SIM | SIM | Dual Sim |
| Interface and accessories | Expanded Slot | Micro SD/TF (Max 32G) |
| Physical Interface | Micro USB +Charging cradle interface, 3.5mm audio | |
| Cradle (optional) | Charge the PDA directly | |
| Printer (Optional) | Can connect all printers supporting bluetooth serial protocol | |
| Other accessories | Adaptor, cable, handstrap | |
| Certifications | IP | IP 67, 1.5m drop |
| Certificates | CTA, CCC, CE, RoHS | |
| Laser Safety | IEC2 / FDA II, IEC60825 / EN60825-1 |
FAQ:
Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Desktop/Handheld Barcode Scanner.
Q5: Where can we download the user manual of your products?
A5: User manual will be sent to you by email after the sample order.
Q6: Warranty time?
A6: 1 year.
Q7: Do you provide Evaluation Kit for testing barcode scanner modules?
A7: Yes,but EVK should be purchased separately.
Q8: Product OEM?
A8: Yes, but it requires certain MOQ and the cost need to be added separately.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are very small, the common shiping methods are post air mail or fast express.
|   |
