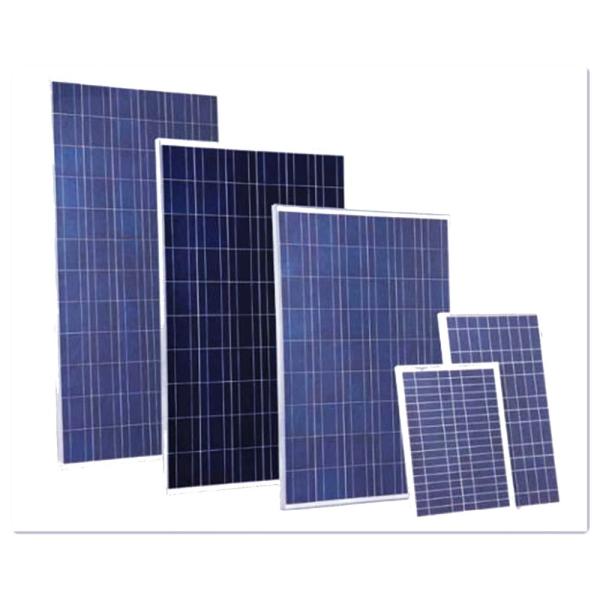

IP65 Waterproof Polycrystalline Solar Panel For Motorhome Shed Caravan

Categories	Balcony Solar System
Brand Name:	OEM
Model Number:	SN-P300W
Place of Origin:	Guangdong, China
Packaging Details:	1000w solar panel packing in carton box, and bulk order with pallet
Supply Ability:	3000000 Watt/Watts per Month 1000w solar panel
Cell size:	158.75mmx158.75mm
Type:	PERC, Half Cell, Bifacial, Double-glass, All Black, Customized Solar Panel
Panel Dimensions:	195099040MM
Panel Efficiency:	20%
Warranty:	10YEARS
Junction Box:	IP65 Waterproof
Connector:	solar connector
Certificate:	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Front Glass:	High Transparency Glass
Front Cover:	3.2mm High Transimissiion
Frame:	Anodized Aluminium Alloy
Frame Color:	Silvery Black
Application:	Solar Power System
Efficiency:	15-18% High Efficiency Solar Panel
Port:	Shenzhen or others as request

Contact Now

Add to Cart

Company Info.

Changsheng Solar Technology Development Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product description

300-355Watt Polycrystalline Solar Panel
Characteristics	SN-P300	SN-P330	SN-P335	SN-P340	SN-P350	SN-P355
Maximum Power(Pmax)	300Wp	330Wp	335Wp	340Wp	350Wp	335Wp
Optimum Operating Voltage/Vmp	30.0V	36.6V	36.9V	38.2V	38.5V	38.7V
Optimum Operating Current/Imp	8.33A	8.78A	8.84A	8.9A	9.09A	9.17A
Open Circuit Voltage /Voc	43.2V	46.1V	46.5V	46.7V	46.9V	47.0V
Short Circuit Current /Isc	9.13A	9.28A	9.36A	9.45A	9.60A	9.69A
Module Efficiency	15.54%	15.30%	15.60%	15.90%	16.20%	16.50%
Weight	19Kg	19Kg	19Kg	19Kg	19Kg	22Kg
Numbers of cells	72(6*12)	72(6*12)	72(6*12)	72(6*12)	72(6*12)	72(6*12)
Cell dimension(mm)	156*156	156*156	156*156	156*156	156*156	156*156
Dimensions(mm)	165099040
Standard test condition	Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance	±3 %
Maximum Series Fuse Rating	15A
Maximum System Voltage	1000V DC
Operating Module Temperature	-40°C to +80°C
Frame Material	Clear Anodized aluminum Frame
Thickness of glass	3.2mm tempered glass
Frame	Anodized aluminum alloy
Laminating material	EVA
Backsheet material	TPT
Junction box	Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT)	45±2℃
Temperature Coefficient of Pmax	-0.45%/2℃
Temperature Coefficient of Voc	-0.34%/2℃
Temperature Coefficient of Isc	-0.050%/2℃

320w 325 Watts 345w Polycrystalline Solar Panel For For Motorhome, Shed, Campervan, Caravan And Boat
