CL2N8- G Most Popular Integrated Circuits , Original Integrated Circuit Driver IC

CL2N8- G Most Popular Integrated Circuits , Original Integrated Circuit Driver IC

Features ‰

• 5.0V to 90V operating range (V_A-B) ‰
• 20mA ±10% at 5-90V ‰
• 0.01% / °C Typical Temperature Coefficient ‰

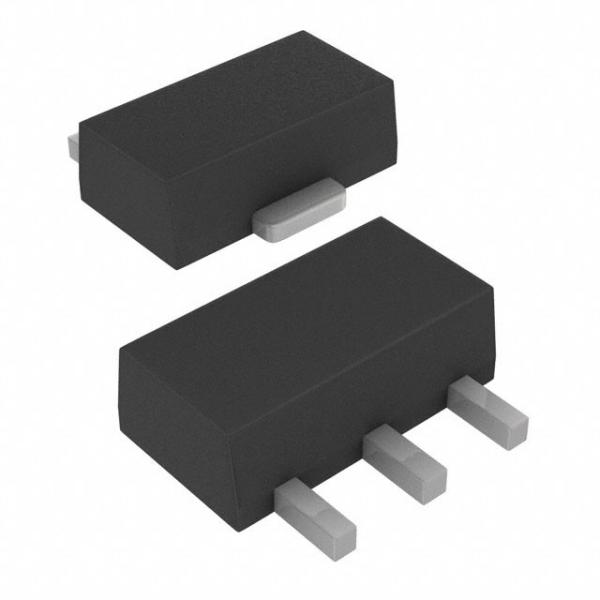

• TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages ‰
• No external components (two terminal device) ‰
• Can be paralleled for higher current

Applications ‰

• LED driver ‰
• Industrial lamp indicators ‰
• Signage ‰
• Accent lighting ‰
• Automotive ‰
• Constant current source ‰
• Constant current sink

General Description

The Supertex CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5-90V. No external components are required. The device can be used as a two terminal constant current source or constant current sink.

A typical application for the CL2 is to drive LEDs with a constant current of 20mA. They can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in SOT-89, TO-252 (D-PAK), and TO-92 packages.

Typical Application Circuit

Package Options
