| Categories | FAKRA HSD Connector |
|---|---|
| Brand Name: | LDS |
| Model Number: | LDS-HSD-04FF |
| Certification: | E-Mark |
| Place of Origin: | China |
| MOQ: | 20 PCS |
| Price: | Contact the seller |
| Supply Ability: | 200000 PCS/Month |
| Delivery Time: | 7~14 work days |
| Packaging Details: | Carton size 29*13*11CM,20pcs per carton |
| Impedance: | 100Ω |
| Frequency: | DC to 2 GHz |
| Insulation Resistance: | ≥1000 MΩ |
| Test Voltage: | 250 V rms |
| Working Voltage: | 100 V rms |
| Power current: | ≤1.5A DC |
| Working Temperature: | -40℃ ~ +105℃ |
| Waterproof Grade: | IP67 |
| Company Info. |
| Shenzhen Leadsign Automotive Electronics Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
High Quality Waterproof Fakra Cable Connector Fakra Z Jack for Car
Description:
The Wakerproof HSD Cable Connector product is designed for
high-speed data transmission to meet automotive data transmission
rates up to 6 GHz.This product has IP67 waterproof rating. Waterproof Fakra Cable Connector connectors provide connectivity solutions for automotive
infotainment modules, cameras, Global Positioning Satellite, display devices and Remote Vehicle.
Key Feature:
1.High-speed shielded connection system suitable for digital data
with performance up to 6 Gbps.
2.High reliable connection, good contact and firm not loose.
3.Can be used in combination with multiple protocol interfaces such
as LVDS Ethernet and USB.
4.Have their own unique coding, coding and color are used for
different purposes.
5.High level of process automation and global manufacturing footprint
6.Extend the PCB connector product portfolio.
7.Have multiple types of integration.
8.IDB 1394 Automotive Specification.
Technical Specifications:
| Material | |
| Housing | PA |
| Center Pin | Copper Alloy |
| Outer contact | Zinc Alloy |
| Insulator | HTN |
| Electrical Performance | |
| Impedance | 100 Ω |
| Frequency Range | DC to 2 GHz |
| Return Loss | ≥20 dB to 1 GHz |
| Insertion Loss | ≤0.1 dB to 2 GH |
| Insulation Resistance | ≥ 1000 MΩ |
| Center Contact Resistance | ≤ 8mΩ |
| Test Voltage | 250 V rms |
| Working Voltage | 100 V rms |
| Contact Current | ≤ 1.5 A DC |
| Mechanical Performance | |
| Mating Cycles | ≥ 25 Time |
| Engagement Force | ≤ 30 N |
| Disengagement Force | ≥5 N |
| Retention Force Latch | ≥ 110 N |
| Temperature Range | -40 °C ~ +105 °C |
| Waterproof Garde | IP67 |

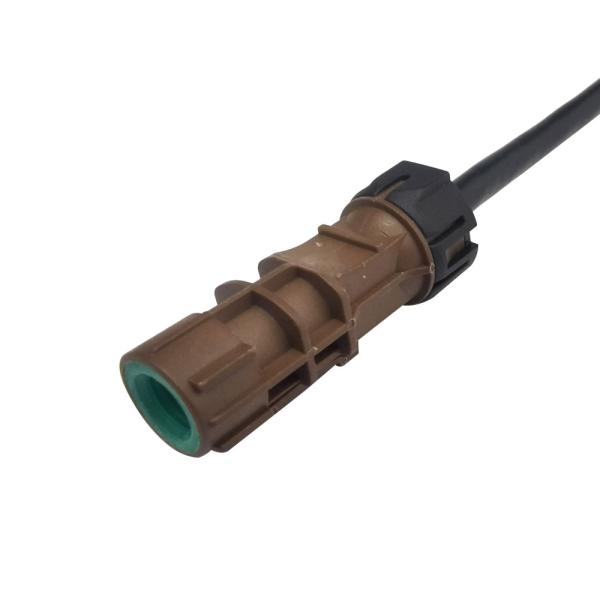

Product image:
FAQ:
1.Q:How do I apply for samples?
A:You can contact our customer service, you only need to pay the freight, our samples are free.
2.Q:Does your factory accept customized service?
A:Yes,we accept OEM&ODM.
3.Q:What are your company's strengths?
A:We have a professional technical team to ensure quality as well as efficiency.
|
