Stainless Steel Panel V Groover Machine Elevator CNC V Grooving Machine

Categories V Groover Machine
Brand Name: SUBIERUI
Model Number: GSTM
Certification: ISO9001,CE
Place of Origin: Wuxi,China
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Delivery Time: 7-40 days
Packaging Details: Waterproof packaging
Number of Cutterbars: 6 pcs; Customizable
Presser foot power: Hydraulic
Cooling action: Air cooling; Customizable water cooling
Processing speed: 120m/min
Input voltage: 380V; Customizable
Total power: 10.5kW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

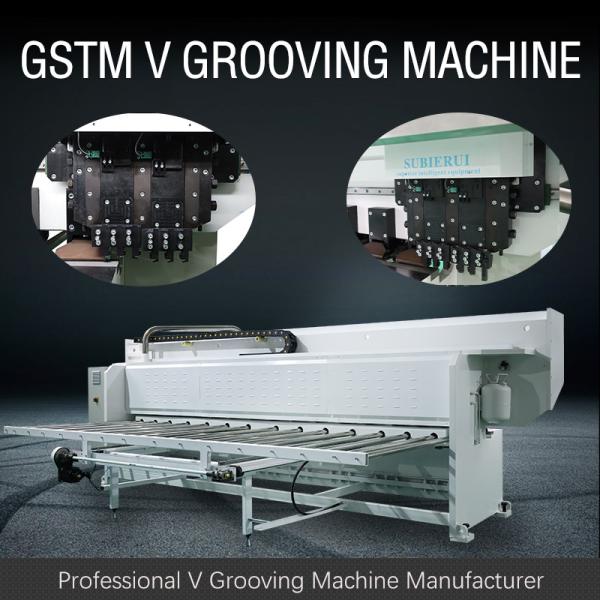

Stainless Steel Panel V Groover Machine Elevator CNC V Grooving Machine

Professional-grade V Groover Machine for Elevator Stainless Steel Panels


One-time forming of workpiece
The workpiece no longer needs to be shifted manually, which greatly improves the dimensional accuracy, saves labor costs, saves time costs and improves production efficiency.


Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.
Professional team
SUBIERUI not only has excellent equipment, but also can provide considerate after-sales service. From the planning and starting of the project, to the production tracking and operation training, to the equipment maintenance, the supply and maintenance of spare parts, we can provide you with a full range of services.
NameParameterUnit
Max. Width of metal sheet1250mm
Max. Length of metal sheet4000mm
Max. thickness(Stainless steel)6mm
Min. Thickness of metal sheet0.4mm
Min.distance of the V from edge10mm
Max. cutting speed of X axis120m/min
Max .return speed of the X axis120m/min
Max.distance of Y axis1250mm
Resolution in Y1 axis0.001mm
Repeated positioning accuracy±0.01mm
Resolution in z axis0.001mm
Repeated positioning accuracy±0.01mm
Motor powerX axis5.5kW
Y,Z1,Z2 axis1.0
Overall dimensionLength5700mm
Width2350
Height2000
