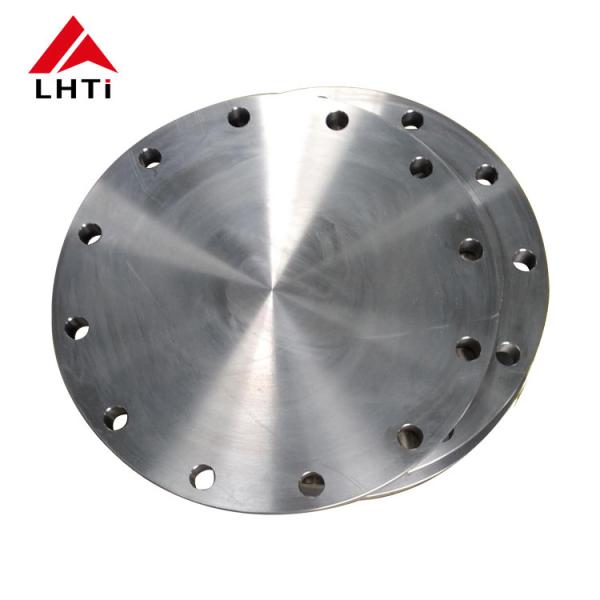

Customized Titanium Blind Flange Class 150 - 2500 Gr2 Gr7 Gr12 Pharmaceutical Use

Categories Titanium Flange
Brand Name: LIHUA
Model Number: LH-BL
Certification: ISO9001, TUV etc.
Place of Origin: Baoji, China
MOQ: 1 piece
Price: US dollar $30/pc--US dollar $180/pc
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Delivery Time: 3-15 work days
Packaging Details: Wrapped by foam contained in plywood box for export
Product name: Titanium blind flange
Standard: ANSI B16.5
Material: Gr2, Gr7, Gr12
Application: Chemical industry
Sealing surface: RF
Size: NPS 1/2" - NPS 24"(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished
Technique: Froged and CNC Machined
Inspection: Ultrasonic Testing & Material Test Report EN10204.3.1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized Titanium Blind Flange Class 150 - 2500 Gr2 Gr7 Gr12 Pharmaceutical Use

Customized Titanium Blind Flange Class 150-2500 Gr2 Gr7 Gr12 Pharmaceutical Use


Gr2 Gr7 Gr12 Factory Direct Titanium Blind Flange with Raised Face Class150-2500


1. Product parameters


Customized Titanium Blind Flange Class 150-2500 Gr2 Gr7 Gr12 Pharmaceutical Use


ProductsTitanium Flange
Material GradeGr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli
CertificationISO9001:2008
StandardANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
size1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure ClasePN0.25~32Mpa
(DIN) PN6,PN10,PN16,PN25 though PN250
150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
TechniqueForged and CNC Machined
typeWNRF, SORF, BLIND, SW, PL
Flange surfaceFF,RF,TG,RJ etc
Applicationused in cars, glasses, medical equipment, electronics, petrochemical equipment
Advantage1. Long service life
2. corrosion-resistant
3.hign yelled strength and tensile strength.

2. Detail images

3. Available Dimensions


OD ( mm)I D ( mm)HEIGHT ( mm)
200-400100-30035-120
400-700150-50040-160
700-900300-70050-480
900-1300400-90070-250

Baoji Lihua Group


As a leading manufacturer of titanium products for over 17 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.

If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.

4. FAQ

1. Any discount?

A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.


2. Are you a manufacturer?

A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.


3. How do I know if my products are delivered?

A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.


4. Has your company acquired any certificate?

A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.


5. How about the quality of the products?

A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.


6. What about payment terms?

A: T/T, L/C, Western Union Paypal are accepted.


7. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.


8. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
