Arduino 2D Barcode Scanner / Omni Directional Scanner Visible Red LED 645 ± 7.5nm

Categories 2D Barcode Scanner
Brand Name: Symcode
Model Number: MJ-1800
Certification: CE FCC ROHS
Place of Origin: GUANGDONG
MOQ: 1 Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 12000pcs/Month
Delivery Time: Sample order:1-3 days / Bulk order:7-15days
Packaging Details: 183mm x 79mm x 111mm
Type:: Barcode Scanner
Colour Depth:: 32 Bit
Scan Element Type:: CMOS
Interface Type:: USB / KB / RS232
Light level: 100,000 Lux(9,290 foot-candles)
Scanning angle: "Pitch 75° Skew 75°"
Current: "Max:330 mA Working:290 mA Idle:200 mA"
Humidity:: 0% to 95% (non-condensing)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

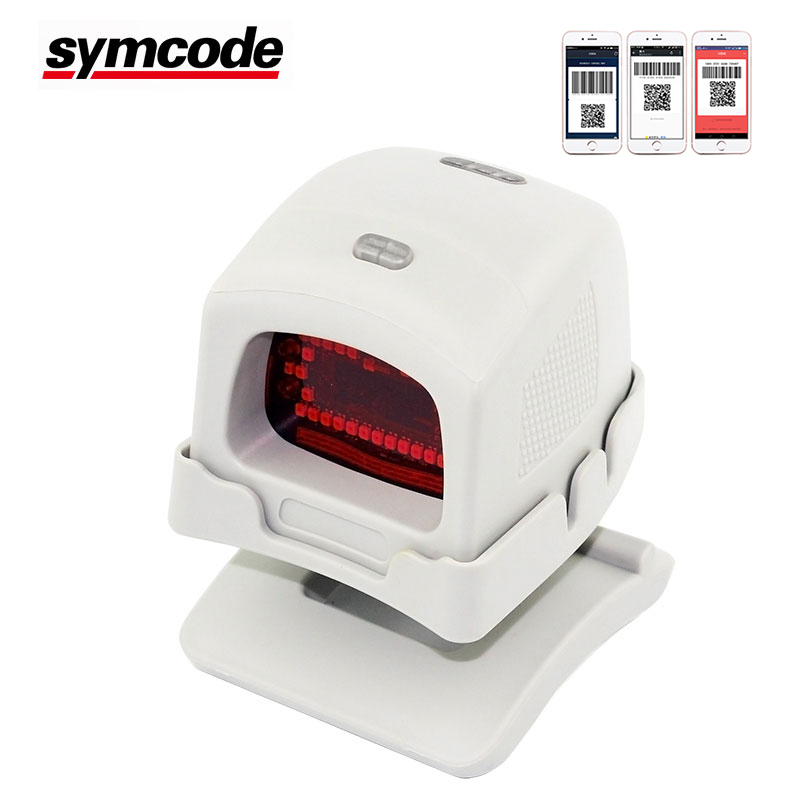

Arduino 2D Barcode Scanner / Omni Directional Scanner Visible Red LED 645 ± 7.5nm

Omnidirectional 2D barcode scanner cheap price

arduino barcode scanner MJ-1800


Features:

1. The Symcode MJ-1800 general purpose presentation scanner delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance.


2. Users never need to take time to align the barcode with the scanner or pause between scans. Since the Symcode MJ-1800 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives.


3. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register.


4. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards.


5. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.


Resolution1280*512
Light sourceVisible Red LED 645±7.5nm
InterfaceRS232 / RS232 / KBW
Decode capability1-D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2-D:PDF417, QR Code, Data Matrix,Maxicode, etc.
Light level100,000 Lux(9,290 foot-candles)
Print Contrast Signal≥ 20%
Scanning anglePitch 75°
Skew 75°
Power Consumption2 W(400mA @ 5V)
VoltageDC 5V ± 0.25V
CurrentMax:330 mA
Working:290 mA
Idle:200 mA
Motion tolerances47cm/s for 13mil UPC at optimal focus
Dimensions183mm x 79mm x 111mm
Temperature0° to 40°C (32° to 120°F), Operating;
-40° to 60°C (-40° to 140°F), Storage
Humidity:0% to 95% (non-condensing
