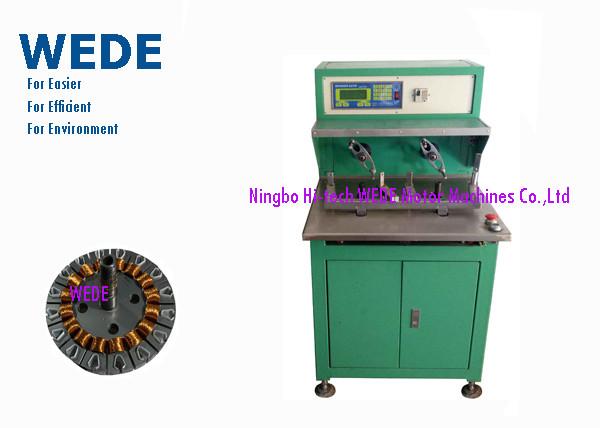

650 * 1250 * 1400mm Ceiling Fan Motor Winding Machine With One Controller

Controller style ceiling fan stator winding machine produce 2 stator windings at the same time.

Main Features

1) Tooling changeover time is less than 10 minutes;

2) It can insert the coil and wedge into stator slot automatically at a time;

3) Paper feeding, coil and wedge inserting are driven by servo motors;

4) Different parameters could be set in human-machine interface;

5) The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;

6) Different sizes stator production can be done by changing tooling;

7) Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.

Quick detail:

1. Low investment but reliable running.

Main parameter:

Stator coils winding machine 10pcs at least match with 2pcs paper inserting machine and 2 pcs wedge inserting machine

Stators Flow chart:

paper inserting machine -winding machine -wedge inserting machine -paper inserting machine -winding machine -wedge inserting machine -sleeve press -terminal press -stator testing machine -varnish machine - shaft press

A professional supplier of motor machines with motor components, MCB machines, induction cooker coils machines and induction cooker named Ningbo Hi-tech WEDE Motor Machines Co.,ltd makes fully preparation to open our arms to welcome your specific inquiries.

Joining hands with 6 factories, WEDE give customers one stop turnkey packaging service.

They are locating at,

Factory 1:50 west JinAiFeng technology zone FuHua Road, Suzhou (DongGuan,WenZhou)

Factory 2:No.165 ShengXin Road, BaChe development zone,Suzhou

Factory 3:No.74 QingSong Road,Zhenlu town,WuJin district,Changzhou

Factory 4:No.66 XiaoWang village, QinXinCun,YaoGuan town,WuJin district,Changzhou

Factory 5:YuLong Bridge SanMen,Taizhou (Yongkang)

Factory 6:150 southwest cross of WuFangShaDaDaoZhong and Xi,NanHai District,FoShan(Huzhou)

Covering products are

Motor Machines:

rotor casting machine, rotor runner press, turning machine, shaft press, end flowers press, commutator press, paper inserting machine, armature winding machine, stator winding machines, coils inserting machine with wedge insertion, wedge inserting machine, coils forming machine, lacing machine, armature welding machine, balancing machine, testing machine, varnish machine, sleeve cutting machine, terminal press

Motor Components:

Ferrite core, magnet, commutator, shaft, bearing, stack core

MCB machines:

MCB coils winding machine, MCB coils forming machine, MCB holder terminal assembly machine, MCB printing machine

Induction cooker coils machines:

wires strands binding machine, coils winding machine, gluing machine, ferrite core inserting machine, heating press

Induction cooker:

Commercial application induction cooker, steamer, noodles cooker

WEDE team promise to give you fully heart service to obtain long term multi-parties wins cooperation. Welcome you join in us for this target too.
