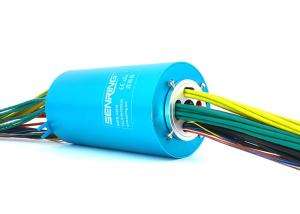

3000A High Current Slip Ring Customized Slip Ring With Hole Size 25mm

Description of 212004250 Custom Slip Ring

SENRING 212004250 series High Current slip ring, hole size 25mm,OD 119mm,sipport 4 circuits (250A each) high current.If you need to combine other circuit/signal channel no.,customization available based on the standard model.

Features of 212004250 Custom Slip Ring

1. High current, maximum current can reach 3000A per channel;

2. Aluminum or stainless steel housing;

3. Has the advantages of small contact resistance, low heat and long - term stable operation;

4. Integrated structure design,easy installation.

Advantage:

1. Affordable price

2. Quality guaranteed

3. Response within 24 hours

4. Prompt delivery

5. Reliable package & shipment

6. Flexible & quick customization

Option:

1. Work temperature.
2. Housing materials.
3. Work speed.
4. Installation method.
5. Position of wire outlet.
6. Lead wire length.
7. Protection degree.
8. Circuits, Current and voltage.
9. Power, signal and data combination.

SENRING Electronics Co., Limited found in 2010, is a worldwide designer, manufacturer of slip rings and rotary joints integrating research, testing, production and sales, owing a scaled factory more than 7000㎡ & 200 staffs as well as a experienced R&D center in Shenzhen. Innovative technology, high quality products and excellent solutions contribute to the leading level of Senring products in slip ring industry. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Senring obtain strusts from more and more customers all over the world, such as Huawei, Foxconn, Siemens...... Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Senring could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.

Professional Team

All of our R&D engineers have bachelor education background as well as rich experiences in machinery structural design and industrial control, all staffs in testing center and production line are above the education of technical school, qualified employees contribute to the reliable products.

Processing Center

Senring owes series of processing machines more than 20sets : injection machine, CNC, lathe, miller.... Senring could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s requirements :OD from 6.5mm to 4 meters, circuits from 1 to 600, current from milliamp to 800 Amp, voltage from millivolt to 10, 000volt, rotating speed from 0 rpm to 12000rpm, and from electrical slip ring to fiber optic rotary joint.......

Center through bore size:besides of standard size, can be customized

Circuits:1~600 circuits ( optional)
OD: 6.5mm ~4 meters (can be customized )
Current: milliamp ~ 800 Amp
Voltage: milliamp ~10, 000volt
Rotating speed: 0~12000rpm
Signal Type: besides of power, can be combined to transmit VGA, HDMI, high frequency, fiber, Ethernet, USB, Profibus.......
Media Type:can be combined to transmit air, gas, water, oil ....(one channel or more channels)

Senring slip ring could be customized according to above different Spec requirements

Industry exhibition

Since its establishment over a decade ago, Senrui Pu has participated in dozens of domestic and international exhibitions of various kinds.

Cooperative Partner

We are Trusted by World Famous Companies.

Certificates / Patents

SENRING gives high priority to the quality, we bring a full sets of testing equipments for all slip rings, each product will be tested strictly before delivery.
