| Categories | Insulated Wire |
|---|---|
| Brand Name: | YANGDA |
| Model Number: | 1213 |
| Certification: | UL |
| Place of Origin: | CHINA |
| MOQ: | 6100M |
| Price: | 0.3USD PER METER |
| Payment Terms: | T/T |
| Supply Ability: | 2000000 METERS PER MONTH |
| Delivery Time: | 10DAYS |
| Packaging Details: | CARTON |
| Product name: | PVC Insulated Electrical Power Cables |
| MATERIAL: | PTFE |
| SIZE: | 360AWG-10AWG |
| RATED VOLTAGE: | 600V |
| CONDUCTOR: | TINNED COPPER |
| Application: | Heating |
| Insulation material: | PTFE |
| Color: | Optional |
| Conductor: | Tin-coated Copper |
| Size: | 30AWG - 10AWG |
| Working temperature: | -60°C~200°C |
| Shape: | round |
| Package: | 2000ft/roll,Carton |

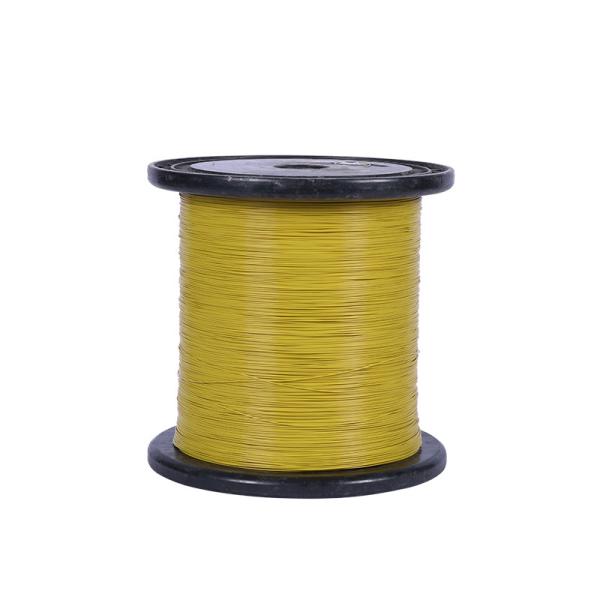

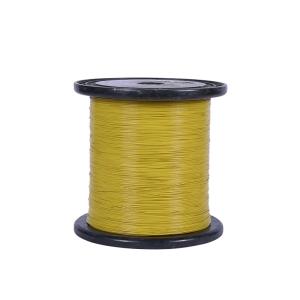

600V Copper Conductor PVC Insulated Electrical Power Cables
Description
1) Product: PTFE WIRE
2) Style No.: AWM1213
3) Size: 32AWG~10AWG
4) Rated Voltage: ~
5) Rated Temperature:-60°C~+105°C
6) Conductor: silver or Nickel copper
7) Insulation: PTFE
8) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
Product Name | 1.5mm 2.5mm 4mm 6mm 10mm 16mm AWG PVC insulated copper electric
cable wire |
Color | Red, black or OEM |
Standard | DIN GB ISO JIS BA ANSI |
Application | Construction, Utility, Industrial |
Insulation | PVC/PE/XLPE |
Product features
Has excellent resistance to high temperature, low temperature
resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and
electronics.
* gas appliances and other high-temperature environment.
| AWG | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm | m/coil |
| 10 | 37×0.43 | 0.4 | 3.81 | 305 |
| 12 | 19×0.49 | 0.4 | 3.25 | 305 |
| 14 | 19×0.37 | 0.35 | 2.55 | 305 |
| 16 | 19×0.30 | 0.35 | 2.2 | 305 |
| 17 | 19×0.26 | 0.3 | 1.8 | 305 |
| 18 | 19×0.23 | 0.3 | 1.75 | 305 |
| 20 | 19×0.18 | 0.3 | 1.5 | 305 |
| 20 | 1×0.80 | 0.3 | 1.4 | 305 |
| 22 | 19×0.16 | 0.3 | 1.4 | 610 |
| 22 | 1×0.65 | 0.3 | 1.25 | 610 |
| 24 | 7×0.20 | 0.25 | 1.1 | 610 |
| 24 | 1×0.50 | 0.25 | 1 | 610 |
| 26 | 1×0.40 | 0.25 | 0.96 | 610 |
| 28 | 1×0.32 | 0.25 | 0.82 | 610 |
| 30 | 1×0.254 | 0.25 | 0.75 | 610 |
| 32 | 1×0.20 | 0.25 | 0.7 | 610 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.L/C is also available.
|
