HCW Swing Turnstile Gate Pedestrian Bi-Directional High Quality Security Access Control QR Code

Categories Swing Barrier Turnstile
Brand Name: Hongchuangwei
Model Number: CW411
Certification: CE/ISO 9001
Place of Origin: China
MOQ: 2 pieces
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1000 pcs weekly
Delivery Time: 6-10 work days
Packaging Details: wood cases
Model: CW411
Item Name: Turnstile gate
Power supply: AC220V±10%
Working temperature: -25℃-70℃
Material: Stainless steel
Size: 1400*140*990 mm
Weight of Pakcage: About 55 KG
Communication interface: switch value, optional,rs232/485
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

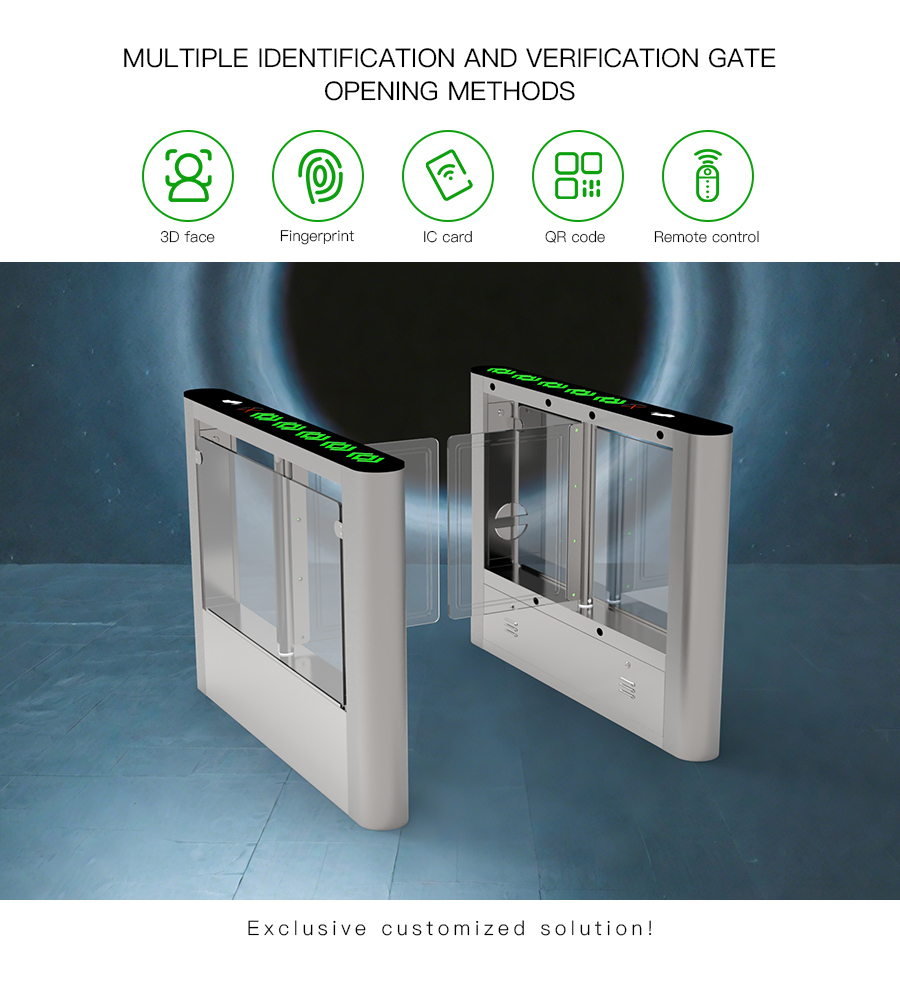

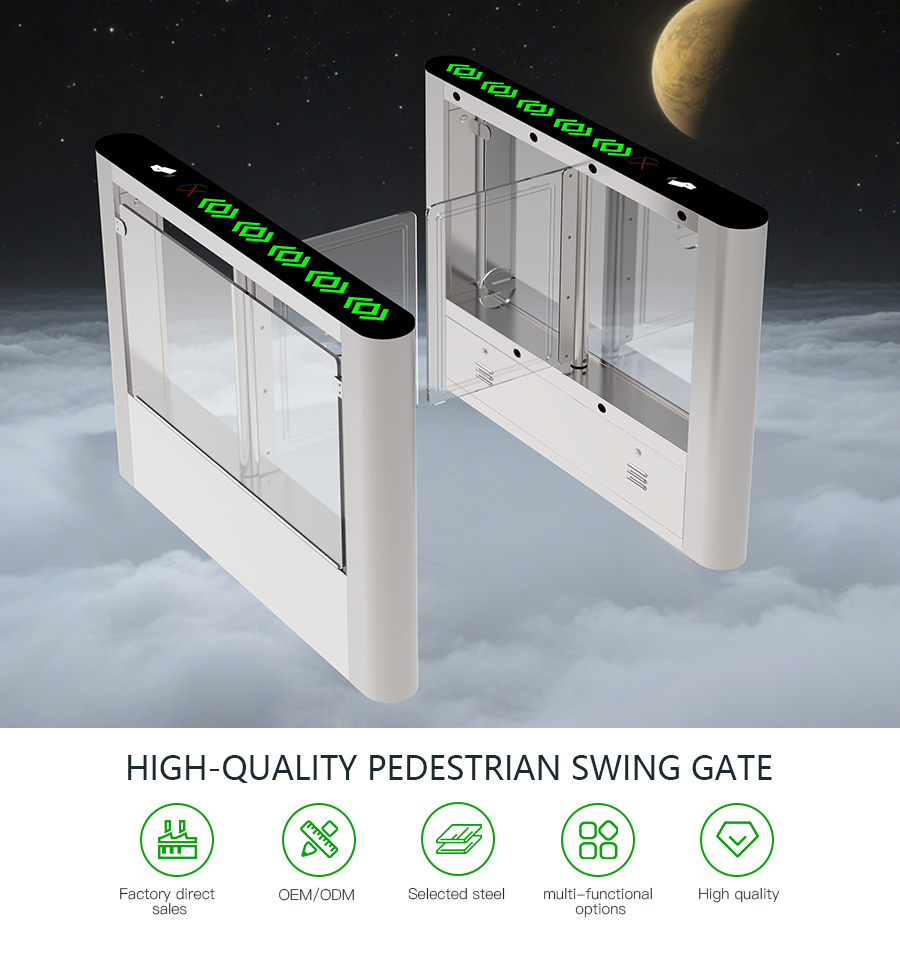

HCW Swing Turnstile Gate Pedestrian Bi-Directional High Quality Security Access Control QR Code

Swing Turnstile Gate Pedestrian Bi-Directional High Quality Security Access Control QR Code



Product introduction


CW411 consists of motor, chassis, gate control board and power supply. CW411 can be widely used in campus. Campus libraries, teaching buildings, student apartments and other places have a large flow of people and are difficult to manage. The use of swing turnstile gates will make management more efficient and intelligent. It can also prevent outsiders from entering the campus.Through 6 pairs of high-sensitivity infrared, the PWM control of the control panel combined with infrared beam detection can accurately detect illegal traffic, and has functions such as anti-trailing alarm, anti-collision and direction discrimination.



Parameter:


Product nameSwing Turnstile gate
Power supplyAC220V+/-10% 50HZ/60HZ
Infrared6 pairs
Channel width550-990mm
Product size1400*140*990MM
Packing weightabout 68KG
Relative humidity≤90% no condensation
Pass speed30-45Persons/min
MotorDC motor
Opening and closing0.5-1S



Advantages

1.Internal and external components: The outer shell is stamped and formed from 304stainless steel , with anti-collision reset function, smooth operation and stable performance. All internal components have been treated with anti-rust and anti-corrosion treatment and are durable;


2.It can be expanded to support 12 pairs of infrared beam devices, which can effectively identify the passage of adults, children and objects. Through complex logical judgment, it has powerful anti-tailing data analysis capabilities.


3.After the legal passage signal is given, if no one passes within the prescribed passage time (adjustable), the system will automatically return the swing arm to the original blocking position and cancel the passage.


4.Emergency escape function: equipped with the automatic opening of the swing arm function and the emergency signal input function after power failure, so that the gate will be in an open state to facilitate the evacuation of the crowd and comply with fire protection requirements.


5.Infrared anti-pinch: Install an infrared detector near the area where the swing arm moves (anti-pinch area). Once a person or object is detected in the anti-pinch area, the swing arm will automatically stop moving; the swing arm will not start until the person or object leaves the anti-pinch area.
