Stainless Steel Press Strain Gauge Load Cell Sensor With High Capacity 500kg

Stainless Steel Press Strain Gauge Load Cell Sensor With High Capacity 500kg

Features :

• Model:F2816
• Tension and compression load cell
• Large capacity
• Made of stainless steel
• High comprehensive precision, high stability
• Simple structure, both sizes threads, easy to install
• Capacity: 0.5KN~100KN

Description:

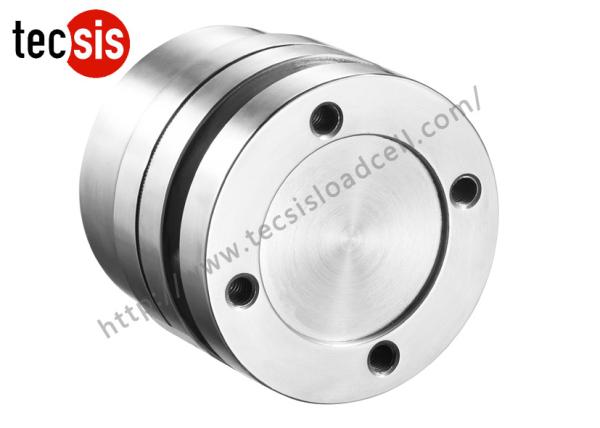

F2816 Force transducer is available in the capacities 0.5KN to 100KN. There are 4 holes on both sides of the load cell, this makes it easy to integrated into mechanical shaft.

The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.

As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.

Applications:

Mainly used for compressive force measuring systems.

Technical parameters:

Size and capacity:

Load direction:

Schematic Wiring Diagram :

Product details:
