| Categories | Omron PLC CJ1W |
|---|---|
| Brand Name: | Omron |
| Model Number: | CJ1W-OD261 |
| Place of Origin: | China/Japan |
| MOQ: | 1/pc |
| Price: | $50-500 |
| Payment Terms: | T/T, western union |
| Supply Ability: | 10pc/per week |
| Packaging Details: | Carton packaging |
| Warranty: | 12 months |
| Expansion unit type: | Basic I/O Unit |
| Number of Outputs and Type: | 64 - Solid State |
| Type: | Output Module |
| Mounting Type: | DIN Rail |
| Termination Style: | Rectangular Connector |
| Company Info. |
| Changsha Zhinian Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| I/O SYSTEM | CJ I/O Bus |
|---|---|
| EXPANSION UNIT TYPE | Basic I/O Unit |
| TYPE OF MODULE | Digital I/O |
| NUMBER OF DIGITAL INPUTS | 0 |
| DIGITAL INPUT TYPE | None |
| NUMBER OF DIGITAL OUTPUTS | 64 |
| DIGITAL OUTPUT TYPE | NPN |
| PERMITTED VOLTAGE AT OUTPUT | 10.2-26.4 V |
| OUTPUT CURRENT | 0.3 A |
| SHORT-CIRCUIT PROTECTED OUTPUTS | No |
| I/O CONNECTION TYPE | FCN (plug not included) |
| NUMBER OF I/O CONNECTORS | 2 |
| DETACHABLE I/O CONNECTOR | Yes |
| SUITABLE FOR SAFETY FUNCTIONS | No |
| NUMBER OF IOV (V+) TERMINALS | 8 |
| NUMBER OF IOG (V-) TERMINALS | 8 |
| NUMBER OF COM TERMINALS | 0 |
| HEIGHT | 90 mm |
| WIDTH | 31 mm |
| DEPTH | 66.5 mm |
| WEIGHT | 110 g |
Features:

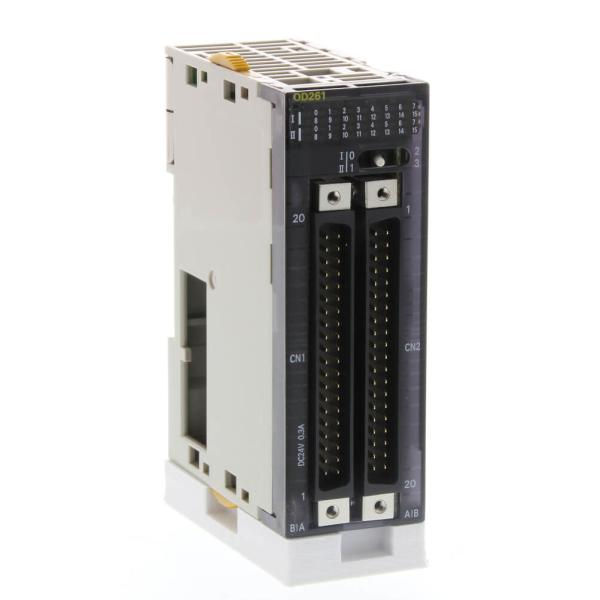

Omron CJ1W-OD261 Digital output unit, 64 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, 2 x FCN40 connectors (not included). Omron CJ Digital I/O Units. CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin ‘flatcable’-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.
|
