Low Power Wireless Hoist Remote Control with IP65 Consumption Plastic Transmitter

Features

• 2~6 commands (Pocket size transmitter : F21-2S/D)

• Low cost for electronic chain hoist/monorail

• Low power consumption transmitter. 2 AA batteries last up to 4 months

• Extra shock resistant relay specially for mobile devices(DC model only)

• Over 4.3 billions unique ID code available.

• Temperature range -35°C ~ +85°C

• Enclosure protection class IP 65

• Microsoft Windows based software for easy customize configuration

• Structure : Glass-Fiber

Transmitter

Dimension:

• 130 x 45 x 22 mm ( F21-2S/D model)

• 156 x 61 x 51 mm ( F21-4S/D model)

• 164 x 75 x 46 mm ( F21-4SB model)

• 156 x 61 x 51 mm ( F21-E1model)

• 164 x 75 x 46 mm ( F21-E1B model)

Receiver

• Dimension: 185x85x85mm

• Weight: 550g (w/o wire cable)

• Receiver Power Supply: 24/48/110/220/380 VAC

&12/24V DC

Weight :

• Approx. 120~380g (without batteries)

EG:F21-E1B
·8 single speed buttons, "stop" button
·with battery voltage warning device, the power supply is cut off during low power.
·Program the button function by computer interface.
·Up/down, east/west, south/north can be programmed to interlock or non-interlock.
·The spare button can be programmed to start, toggle or normal, etc.

Detailed Images

Name: F21-E1B
Brand: TELEcontrol(UTING)
Original: Zhejiang, China (Mainland)

Name: F21-E1B
Brand: TELEcontrol(UTING)
Original: Zhejiang, China (Mainland)
Have a high pressure version (left) receiver according to the voltage grade, low voltage version (right) to choose from

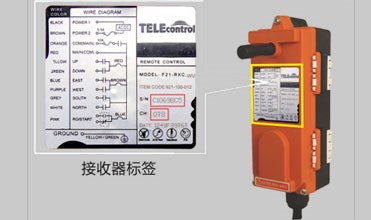

Images in the red box in the code for the product S/N code channel number of vibration and CH code, each product launch and receive code must agree, if users need monogamous transmitter or receiver, only need to provide these two kinds of coding.

Images in the red box in the code for the product S/N code channel number of vibration and CH code, each product launch and receive code must agree, if users need monogamous transmitter or receiver, only need to provide these two kinds of coding.

Some Accessories
