Name: 10mm 25mm 30mm Self Drilling Torx Head Screws For Steel Beam DIN7504N
Brand: crever
Price: 1 USD

Home > Screws >

10mm 25mm 30mm Self Drilling Torx Head Screws For Steel Beam DIN7504N

Categories	Self Drilling Screws
Brand Name:	crever
Model Number:	DIN7504N
Certification:	ISO
Place of Origin:	Jiangsu,China
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, L/C, D/P
Supply Ability:	300 ton per month
Delivery Time:	10-30 working days
Packaging Details:	bulk packing, small box packing, packing as required
Material:	carbon steel, C1018, C1022, C10B21
Colour:	yellow zinc, black, gray, paint, HDG, ruspert, nickel
Sizes:	3.5x9.5mm--6.3x200mm
Drive:	philips, torx, squre, combined
Process:	heading, threading, hardened, zinc plated
Standard:	DIN7504N

Contact Now

Add to Cart

Company Info.

Suzhou Crever Fastener Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

10mm 25mm 30mm Self Drilling Torx Head Screws For Steel Beam DIN7504N

10mm 25mm 30mm Self Drilling Torx Head Screws For Steel Beam DIN7504N

1.Descriptions:

1. Name: DIN7504N pan head self drilling screws, zinc plated

2. Grade: C1018, C1022, SUS201,SUS410,SUS304,SUS316,A2-70,A2-80,A4-80

3. Size: 3.5mmx10mm--6.3x200mm

4. Standard: DIN7504N

5. Certification: ISO9001, SGS, CTI, ROHS

6. Drive: philips, pozi, socket, hex, square, slotted, combined

Size	Diameter:ST3.5--ST6.3
Size	Length: from 9.5mm--200mm
Material	1.Stainless steel	SUS201,304,316,410
	2.Carbon steel	C1018,C1022,C10B21,C10B33,C1035,C1045,C435#,40CrMo,42CrMo
	3. Alloy steel	SCM435,C10B21,C10B33
	4. Iron	1213,12L,1215, etc.
	Standard	DIN7504N
	Application	Building,Industry,Furniture,Sanitary,Electronics,Traffic.

2. Applications:

Self-drilling screws have hardened drill points that will drill and thread in structural steel, mild steel, aluminum and wood. These drill points are manufactured in the same method as the high speed drill bits. Self-drilling screws are available in a variety of finishes with unique product features to suit a wide range of environmental conditions.

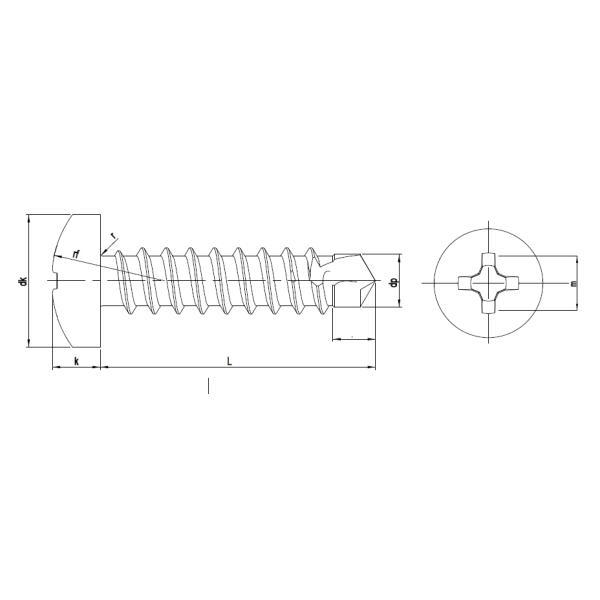

3. Drawing Dimensions:

Metric (d)	dk	k	a (max)	dp (max)	Drive
2.9 (#4)	5.60-5.30	2.40-2.15	1.9	2.3	#1
3.5 (#6)	7.00-6.64	2.60-2.35	2.25	2.8	#2
3.9 (#7)	7.50-7.14	2.80-2.55	2.4	3.1	#2
4.2 (#8)	8.00-7.64	3.10-2.80	3	3.6	#2
4.8 (#10)	9.50-9.14	3.70-3.40	4.4	4.1	#3
5.5 (#12)	11.00-10.57	4.00-3.70	5.25	4.3	#3

4.Technical Data:

Course Thread Self Drilling Screws – #3 Point
Nominal Size or		Threads	T		t		A		B
Basic Screw		Per Inch	Major Diameter		Minor Diameter		Drill Point Length		Drill Point Diameter
Diameter			Max	Min	Max	Min	Max	Min	Max	Min
5/16	0.3125	12	0.315	0.307	0.272	0.263	0.421	0.361	0.27	0.265
3/8	0.375	12	0.38	0.37	0.308	0.298	0.354	0.314	0.338	0.33

Mechanical properties Tests
drill point	sizes	torque strength kgf		tensile strength kgf	shear strength kgf
		SUS304 and SUS316	SUS302
No.3 point	#8 (4.2)	45	36
	#10 (4.8)	52	42
	#12 (5.5)	84	68	810	620
	#14 (6.3)	132		900	710
No.5 point	#12 (5.5)	84	68	920	650
No.5 point	#14 (6.3)	132		1050	745

5. Advantage:

1. Quality control: we make 100% quality test during producing and before shipping

2. Rich experience: we have been export screws for more than 20 years

3. Competitive prices: the better quality, but cheaper prices

4. Timely quotation: send you prices within one day

5. Good services: we supply OEM, ODM,OBM services and best after-sale services

6. Punctual delivery: we can ship every order without delay

6. More pictures:

DIN7504N PAN HEAD SELF DRILLING SCREWS, ZINC PLATED
