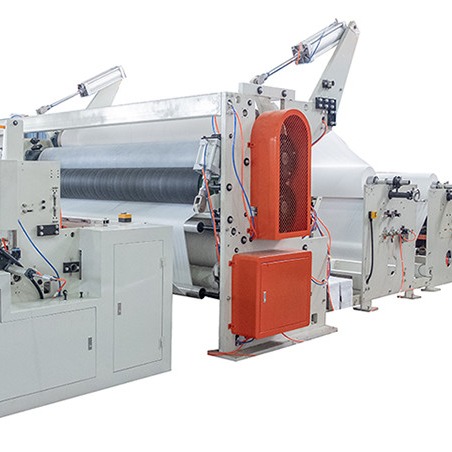

PLC Program Control Automatic Kitchen Towel Machine 150-200m/Min Point To Point
Description
YY-KT Automatic Kitchen Towel Machine is developed for customers targeting high production capacity and excellent kitchen towel rolls with a diameter of 150-300mm. It can run at the speed of 150-200m/min). Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
Full-face embossing (standard/optional),1 or 2 colors Logo printing(optional). Point to point laminated emboss and nested emboss are available.
Technical Parameters
| Item No | Part name | Qty | Unit | Note |
| 1 | Unwinder | 2 | set | Wall-plate structure with independent motor |
| 2 | Pneumatic emboss(Optional) | 1 | set | Steel to rubber |
| 3 | Glue Lamination(Optional) | 1 | set | |
| 4 | Airbag edge emboss (Optional) | 1 | set | |
| 5 | Winding part | 1 | set | Perforation unit, winding, finished roll pushing out and new core tube infeed, Trimming and Tail-sealing,Automatic transfer to cutting machine |
| 6 | Automatic band saw(Optional) | 1 | set | Cutting roll diameter range 150-280mm |
Unwinder 2sets
| Item No | Name | Technical parameters |
| 1 | Unwinder structure | Wall-plate |
| 2 | Maximum jumbo roll width | 2860mm |
| 3 | Jumbo roll diameter | ≤￠1500mm |
| 4 | Jumbo roll core diameter | ￠76mm |
| 5 | Unwinding belt | 2pcs/set |
| 6 | Unwinding speed | Adjust by the touch screen |
| 7 | Jumbo roll left and right movement | By Hand wheel |
| 8 | Jumbo roll loading | Pneumatic loading |
| 9 | Driving | Independent motor+timing belt |
| 10 | Power | 3KW/set |
Winding part 1set
| Item No | Name | Technical parameters |
| 1 | Structure | Wall-plate |
| 2 | Winding roller width | 2860mm |
| 3 | Paper GSM | 13-22g/m2(single ply) |
| 4 | Number of plies | 1-2 plies |
| 5 | Design speed | 250m/min |
| 6 | Finished roll diameter | ￠150mm-￠300mm |
| 7 | Widing diameter | Manual adjustment |
| 8 | Widing lenth | Set in the touch screen by pitch number |
| 9 | Winding speed adjustment | Set in the touch screen |
| 10 | Finished roll core diameter | ￠60mm—￠76mm |
| 11 | Finished roll core thickness | Less than 6mm |
| 12 | Core tube infeed | Pneumatic control |
| 13 | Slitting device | Not included |
| 14 | Perforation device | One spiral perforation knife roller,4 perforation upper blades. One perforation knife roller Automatic induction knife shaft protection |
| 15 | Perforation pitch | Standard pitch:120mm(其他请指定,采用更换链轮的方式调整节距Other sizes please specify, adjusting the pitch by changing the chain wheel) |
| 16 | Perforation pitch tolerance | ±2mm |
| 17 | Pitch proportion | 3mm:1mm |
| 18 | Perforation bottom knife angle | adjustable |
| 19 | power | Winding motor2.2kw; perforation motor 5.5kw; Cutting motor 0.75kw；Trimming motor0.2kw； |
| Operation and control system | ||
| 20 | Operation panel | Touch Screen |
| 21 | Electric cabinet position | Installed on the main machine |
| 22 | Main motor speed control | Frequency control |
| Other parameters | ||
| 23 | Minimum Air pressure | 0.4Mpa |
| 24 | Air consumption | 1000L/H |
| 25 | Web-threading | Manual |
| 26 | Paper breaking detection | Yes |
| Transmission | ||
| 27 | Transmission | Timing belt+Chains |
| Others | ||
| 28 | Safeguarding | Safe covers for all the main parts |
Emboss unit 1 set
| Item No | Name | Technical parameters |
| 1 | Maximum jumbo roll width(mm) | 2860 |
| 2 | Design speed(m/min) | 280 |
| 3 | Production speed(m/min) | 250 |
| 4 | Emboss steel roller | Seller and buyer confirm the emboss design and confirm laser engraving or corrosion |
| 5 | Emboss rubber roller | 45# Core shaft,Surface rubber casting |
| 6 | Pressure adjustment | Cylinder loading pressure, limit screw adjusting pressure |
| 7 | Paper breaking detection | yes |
| 8 | Power | Emboss motor 5.5KW |
| 9 | Minimum pressure required | 0.6Mpa |
| 10 | Air consumption | 50m³/shift(8hours) |
| 11 | Transmission | Independent motor |
Glue lamination 1 set
| Item No | Name | Technical parameters |
| 1 | Maximum jumbo roll width(mm) | 2860 |
| 2 | Design speed(m/min) | 250 |
| 3 | Production speed(m/min) | 150-200(depends on the paper quality) |
| 4 | Lamination system | Independent glue box with filter, automatic glue feeding |
| 5 | Rubber scraping system | Closed chamber glue scraping system, Glue will be applied to the rubber roller evenly. |
| 6 | Gluing width | Adjust the plate to achieve different gluing width |
| 7 | Emboss system | Slide fixing emboss rollers,easy to change emboss rollers |
| 9 | Pressure adjustment | Cylinder loading pressure, limit screw adjusting pressure |
| 10 | Paper breaking detection | yes |
| 11 | Power | Main motor 30KW,Brush motor 2X0.55KW,Total power 31.1KW |
| 12 | Minimum air pressure | 0.6Mpa |
| 13 | Air consumption | 150m³/shift(8hours) |
| Transmission | ||
| 14 | Driving | Independent motor transmission |
| 15 | Emboss driving | Timing belt and gear |
| 16 | Anilox roller | Independent frequency motor transmission |
| Others | ||
| 17 | Safeguarding | Safe covers for the main parts |
| 18 | Hand clamping protection | Installed between the emboss rollers |
Band saw
| Item No | Name | Technical parameters |
| 1 | Machine weight | 2700kg |
| 2 | Cutting speed | 20~25cuts/min |
| 3 | Cutting channel | 1 |
| 4 | Cutting blade | 5180*90*1 |
| 5 | Material length | As customer required |
| 6 | Cutting tolerance | ±2mm |
| 7 | cutting length | ≤400mm |
| 8 | Cutting diameter | 150-300mm |
| 9 | Core thickness | ≤6mm |
| 10 | Grinding device | Automatic infeed |
| 11 | Knife grinding and dust remove | yes |
| 12 | Band saw Tensioning device | Hydraulic |
| 13 | Saw breaking alarm | yes |
| 14 | Total power | 15kw |
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your business moving.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Training
|
