Non Isolated Power 200W Round Highbay UFO Driver With DIP Switch
ES-RND200 0-10VDimming/CCT Tuning/Wattage Adjusting series, is a 200W round non-isolated power driver with constant current.
appropriate hear radiation design and all-around protection of OTP, OVP and SCP, highly improved its reliability and lifespan.
High Efficiency(Up to 95%)
Two Stage Design, Flicker-Free
With Active PFC For High PF/ Low THD
Adjust Wattage & CCT by DIP Switch
Isolated dimming:0-10V PWM,Resistor
With Auxiliary Power for 12V/200mA
Surge Protection: L-N:4KV, L/N-PE:6KV
All-Around Protection:OTP, OVP, SCP
Five-year warranty
Output | Output voltage | 350Vdc Max(@no load) |
180-260Vdc | ||
Output current adjustable range | 0.6-1.0A | |
Rated Output current | (0.77A@260V;1.0A@200V) | |
Rated Output voltage | 180V Min ,260V Max (Po=Vo*Io=160W,full load) | |
Output LF current ripple(<120Hz) at full load | <5% | |
Full power output voltage | 200-260Vdc | |
Efficiency(Typ.) | 92%@230Vac, full load@260Vdc | |
Input | Input power Max | 175W,@25℃,230Vac 260Vac |
Input current | 2.5Arms Max | |
Input voltage range | Rated:200-240Vac Extreme:176-264Vac(Refer to the reduction curve) | |
Frequency range | 47-63Hz | |
Frequency range | PF≥0.95@230Vac,@full load,47-63Hz； Other load conditions, please refer to power factor curve | |
Total harmonic distortion | THD≤10%,@230Vac,full load; Please refer to: total harmonic distortion waveform | |
Inrush current(Typ.) | 100A @230Vac, Ta=25℃, cold start | |
Leakage current | <0.75mA @ 277Vac | |
Protection | Over temperature | Power derating, recovers automatically |
Over voltage protection | Hiccup mode, recovers automatically after voltage fault condition is removed | |
Short circuit protection | Hiccup mode, recovers automatically after load fault condition is removed | |
Environment | Environmental temperature | Ta:-40~55℃,please refer to load VS temperature curve |
Ambient temp | Tc:-40~90℃ | |
Working humidity | 10～95% RH, no condensation | |
Storage temp. and humidity | -40～+85℃, 5～95% RH | |
Environmental protection | UL Dry, Damp or Wet Location, IP65 | |
Vibration protection | 10～500Hz, 5G 12min./cycle, period for 72min. Each along X, Y, Z axes | |
Safety &EMC | Safety standard | IEC/EN61347-1(GB19510-1-2009), IEC/EN61347-2-13(GB 19510.14-2009), UL8750, CSA C22.2 NO. 250.13-12；IP65 approved |
Withstand voltage | Input-Aux:3.75KVac,Output-Aux:3.75KVac, Input-PE:1.5KVac, Output-PE:1.5KVac | |
Insulated resistance | I/P-PE,O/P-PE>100M Ohm/500VDC/25℃/70%RH | |
EMI | EN55015 , FCC PART15-CLASSB | |
Harmonic current | EN61000-3-2 Class C | |
Surge protection | L/N-PE:6KV,L-N:4KV | |
EMS | EN61000-4-2,3,4,5,6,8,11; EN61547 Industry standard | |
Others | MTBF | ≥200Khrs,MIL-HDBK-217F(25℃) |
Weight/Size | 1.1Kg/See mechanical data for details | |
Case color | Black |

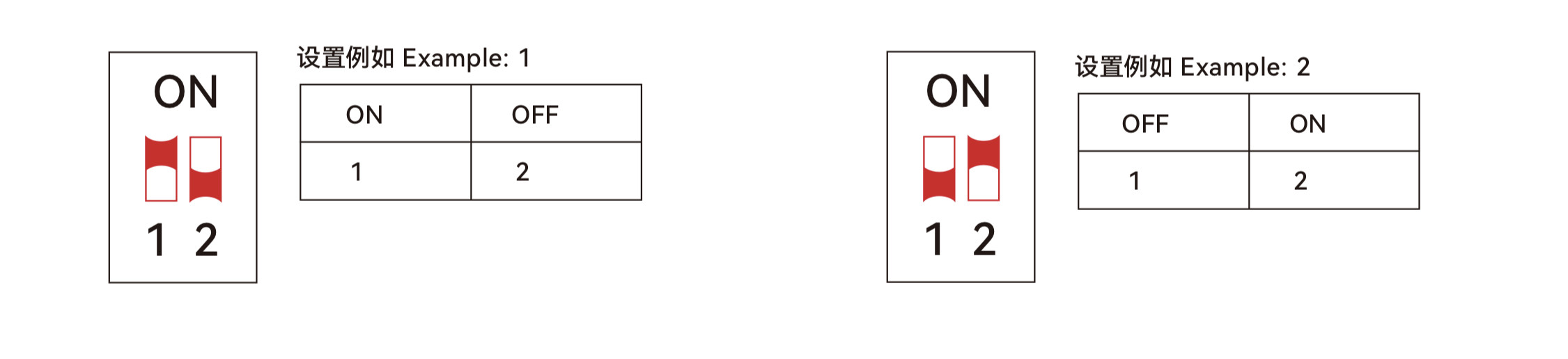

DIP Switches | Input Current | Power range | |
1 | 2 | Typical Value | |
OFF | OFF | 0.93A | 190-210W |
ON | OFF | 0.73A | 140-160W |
OFF | ON | 0.49A | 90-110W |
*Please find the attached WIRING DIAGRAM *
ES-RND 200 DIP WIRING DIAGRAM.pdf
Attention
1. The driver should be kept away from heat source and inflammable or explosive
materials.
2. The driver should be installed in open space. In actual application, Tc temperature should not exceed the max allowed temperature(89℃) in the most extreme condition.
3. With high voltage danger! Please don’t check under the condition of live working. Only professional electricians may carry out wiring and other operations.
4. Ensure that the input / output wires joint are completely sealed and waterproof-treated if required to prevent electric shock and leakage. The impedance caused by the connection mode in the application should not affect the normal function of the driver.
5. The driver lifespan is directly related to the driver working temperature. Please refer to the life&temperature curve to evaluate the applicability of the driver.
6. In practical application, please pay attention to the surge capacity of the front protector.
7. Pay attention to distance between wire & LED and the heatsink in practical application of non-isolated driver.
|
