| Categories | Overhead Line Fittings |
|---|---|
| Brand Name: | LJ |
| Model Number: | NllD-1, NLLD-2, NND-3, NLLD-4 |
| Certification: | IEC 61284-1997 |
| Place of Origin: | Luohe China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000/per month |
| Delivery Time: | 20 |
| Packaging Details: | Wooden Case Package |
| Name: | Overhead Line Fittings |
| Material: | Aluminum |
| Grip Strength: | 95% break strength of the conductor |
| Customized: | Yes |
| Sample: | Immediately |
| Color: | Silver |
| Company Info. |
| Powerchina Henan Electric Power Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

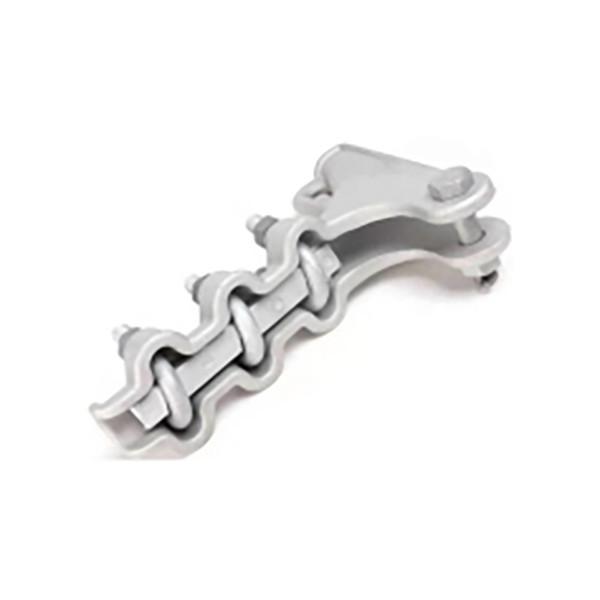

NLD Series Aluminium Alloy Tension Clamp Bolt Type Strain Clamp Overhead Line Fittings
Overhead Line Fittings
NLD series strain clamp ( Bolt type ) is suitable for aerial line up to 10kv, fixing aluminium wire or steel core aluminium wire on the strain pole, aerial insulation aluminium conductor and insulation aluminium cover are being used together.
• The clamp body and keepers are malleable iron,cotter-pins are stainless steel.the other parts are steel, all ferrous parts are hot-dip galvanized.
• The clamp can be easily installed without damage to the cables or conductor.
• Grip strength of the clamp is more than 95% break strength of the conductor.
• Standard: IEC 61284-1997
Technical data sheet
Catalog No. | (mm) Conductor Dia. | (mm)Dimensions | kN) Rated Failure Load | (kg) Weight | ||||
| M | C | L1 | L2 | R | ||||
| NLD-1 | 5.0-10.0 | 16 | 18 | 150 | 120 | 6.5 | 20 | 1.3 |
| NLD-2 | 10.1-14.0 | 16 | 18 | 2.5 | 130 | 8.0 | 40 | 2.1 |
| NLD-3 | 14.1-18.0 | 18 | 22 | 310 | 160 | 11.0 | 70 | 4.6 |
| NLD-4 | 18.1-23.0 | 18 | 25 | 410 | 220 | 12.5 | 100 | 7.1 |
Catalog No. | (mm) Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight | |||
| M | C | L1 | L | ||||
| NLL-1 | 5.0-10.0 | 16 | 18 | 140 | 130 | 40 | 1.0 |
| NLL-2 | 10.1-14.0 | 16 | 21 | 212 | 180 | 40 | 1.6 |
| NLL-3 | 14.1-18.0 | 16 | 24 | 295 | 250 | 70 | 1.9 |
| NLL-4 | 18.1-23.0 | 18 | 30 | 324 | 255 | 90 | 4.1 |
| NLL-5 | 23.0-29.0 | 22 | 36 | 400 | 320 | 120 | 7.0 |
| NN-6 | 27.0-38.0 | 22 | 44 | 560 | 360 | 120 | 8.1 |
Advantage:
1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries.
About us
POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.
Professional customer service, product development, technical Support and after Sale Service.
POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.
POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
|
