220V PSA Generator Oxygen 380V Pressure Swing Adsorption Oil And Gas Industry Use

Categories Nitrogen Oxygen Generator
Model Number: KSZD
Place of Origin: China
MOQ: 1 set
Price: Contact Us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Delivery Time: 20-60 working day
Packaging Details: According to customer's requirement
Brand Name: Custom
Color: Blue
Product Name: Nitrogen production equipment
Feature: Pressure swing adsorption
Material: Iron/Stainless steel
Applicable industry: 1.Metallurgy, metalworking industry 2.Chemical industry, new material industry 3.Mining industry 4.Oil and gas industry 5.Food and pharmaceutical industries 6.Electronic industry 7.Automotive, transportation and mobility industries and so on
Voltage: 220/380/440V,50/60Hz
Usage: Nitrogen
Condition: New
Weight: Actual Weight)
After-sales service provided: Video technical support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

220V PSA Generator Oxygen 380V Pressure Swing Adsorption Oil And Gas Industry Use

Nitrogen Oxygen Generator Pressure swing adsorption Oil and gas industry use

Technological advantage:
1.Advanced process flow:Referring to the international advanced technical scheme, two adsorption I bitter process design,

the application of advanced short flow process, improve the utilization rate of carbon molecular sieve and adsorption efficiency, to
ensure the service life of molecular sieve. The adsorption performance is improved and the demand for compressed air is reduced.
2.Filling process:The filling technology adopts the vibration filling method combining inside and outside,the carbon molecular sieve
filling density is increased, the collision between the molecular sieve is controlled, and the carbon molecular sieve is prevented from
loosening andpulverizing.

3.Use advantage:The optimized design of the nitrogen production device overcomes the defects of PSA nitrogen production system

and improves the reliability and service life of the device. The time from startup to qualified nitrogen is less than 15 minutes.


Main field of use:
1.Metallurgy, metalworking industry 2.Chemical industry, new material industry 3.Mining industry 4.Oil and gas industry 5.Food and pharmaceutical industries 6.Electronic industry 7.Automotive, transportation and mobility industries and so on


Technical parameter of standard Nitrogen generating equipment (Nitrogen purity is99.5%)


ModelN2 output (Nm³/h)Air consumption (Nm³/min)Inlet and outlet diameter(mm)
KSZD-550.26DN15DN15
KSZD-10100.51DN15DN15
KSZD-20201.03DN25DN25
KSZD-30301.54DN25DN25
KSZD-40402.05DN25DN25
KSZD-60603.08DN25DN25
KSZD-80804.11DN40DN32
KSZD-1001005.13DN40DN32
KSZD-1201206.16DN40DN32
KSZD-1601608.21DN50DN40
KSZD-20020010.27DN50DN40
KSZD-23023011.81DN50DN40
KSZD-26026013.35DN65DN50
KSZD-30030015.40DN65DN50
KSZD-33033016.94DN65DN50
KSZD-36036018.48DN65DN50
KSZD-40040020.53DN65DN50
KSZD-43043022.07DN80DN65
KSZD-46046023.61DN80DN65
KSZD-50050025.67DN80DN65
KSZD-53053027.21DN80DN65
KSZD-56056028.75DN80DN65
KSZD-60060030.80DN80DN65
KSZD-70070035.93DN100DN65
KSZD-80080041.07DN100DN65
KSZD-1000100051.33DN100DN65
KSZD-1200120061.60DN125DN80
KSZD-1500150077.00DN125DN80
KSZD-20002000102.67DN150DN100
KSZD-25002500128.33DN150DN100

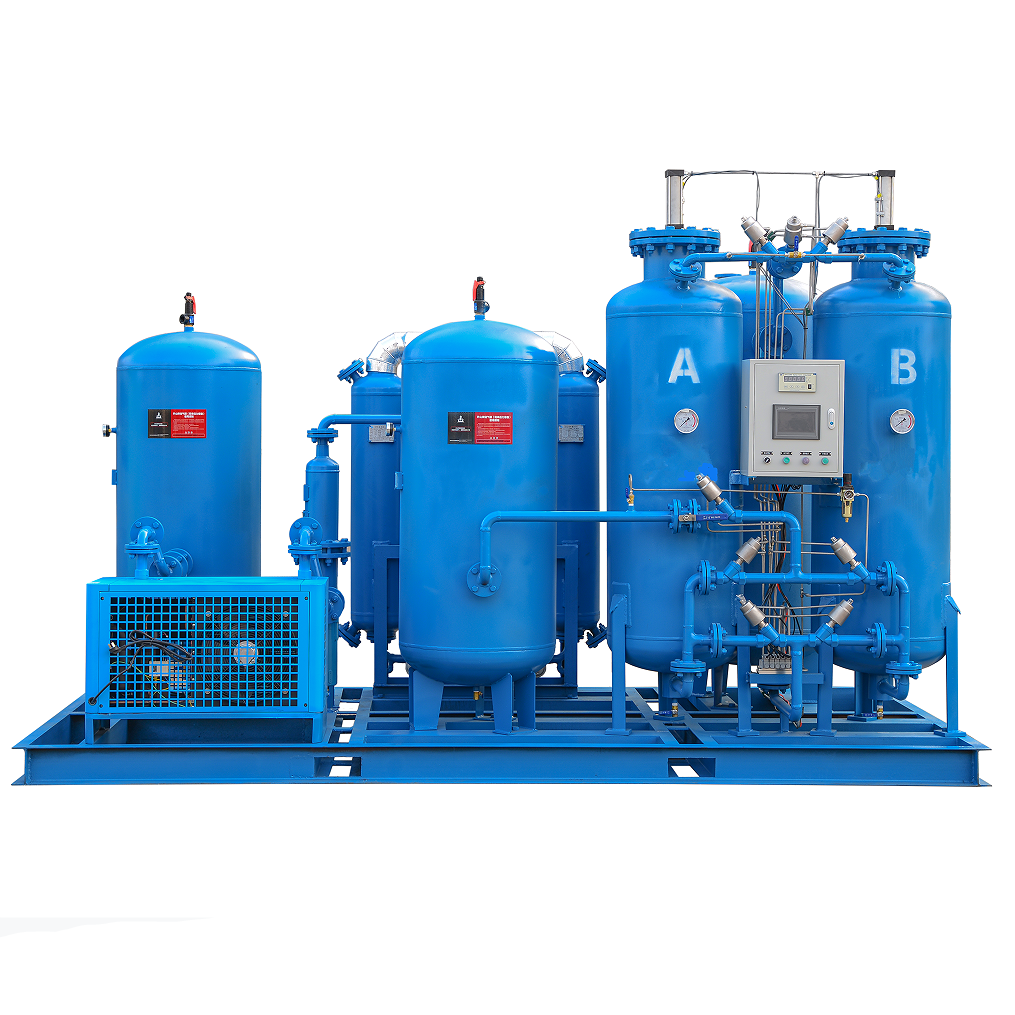

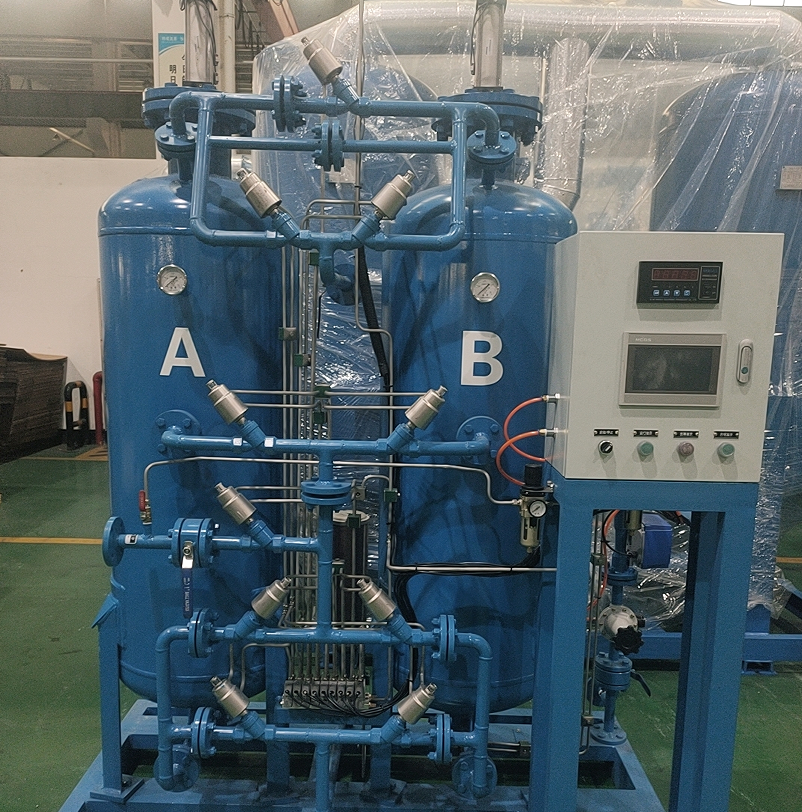

Product detailed pictures:

China 220V PSA Generator Oxygen 380V Pressure Swing Adsorption Oil And Gas Industry Use factory
