| Categories | Gearbox Stepper Motor |
|---|---|
| Brand Name: | JIUQI |
| Model Number: | JQHS-35-2 |
| Certification: | RoHS,ISO9001 |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 100PCS |
| Price: | $30~$50/PCS |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 50000 PCS/MONTH |
| Delivery Time: | Trial orders :2 WEEKS Bulk orders: within 3 weeks |
| Packaging Details: | with export carton . Bulk order with pallets |
| Type: | Hybrid |
| Phase: | 2 |
| Voltage: | 1.2/2.8 |
| Step angle: | 1.8 degree |
| Current/phase: | 0.31/1.33 |
| Suitable motor: | Nema14 Stepper motor |
| Highlight: | planetary stepper motor,Gearebox,Gear reducer |
| Product Name: | Hybrid motor with Planetary gearbox |
| Company Info. |
| JiuQi Motor (Changzhou) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

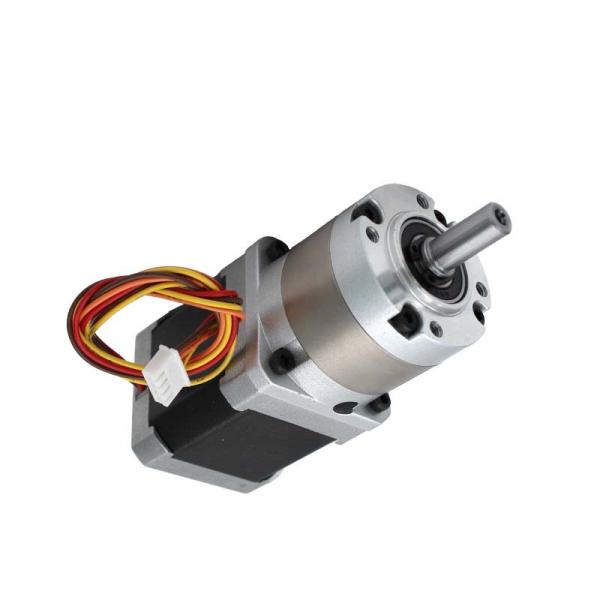

Round Gear Planetary Reducer With Hybrid Motor High Precision
Gearbox
1. Genernal Specification:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(10mm from flange) | ≤100N |
| Max.Shaft Axial Load | ≤50N |
| Radial Play of Shaft (near to Flange) | ≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
2. JQHS-20-1 Stepper Motor specification
| Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
| /Phase | /Phase | /Phase | ||||||
| V | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JQHS-35-1-1 | 1.2 | 0.31 | 38.5 | 21 | 1.6 | 6 | 35 | 0.22 |
| JQHS-35-1-2 | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 |
3. Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
| Number of gear trains | 1 | 2 | 3 | ||||||
| Length(L2) mm | 27 | 34.2 | 41.1 | ||||||
| Max.rated torque kg.cm | 20 | 30 | 50 | ||||||
| Short time permissible torque kg.cm | 60 | 90 | 180 | ||||||
| Efficiency | 90% | 81% | 73% | ||||||
| Backlash at no-load | 0.5° | 1.0° | 1.5° | ||||||
| Weight g | 158 | 197 | 236 | ||||||
4. Dimension
5. Typical Applications
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
7. Our promise to our Customers:
|
