120MHz Wireless Communication Module ESP8684-WROOM-06C 32bit RISC V Single

Wireless Communication Module ESP8684-WROOM-06C 120MHz 32bit RISC-V single core processor

Description

The ESP8684-WROOM-06C is based on the ESP8684 chip. It can be mounted onto the surface of a PCB board, or vertically soldered to a PCB board. When surface mounted, the module has 14 available GPIOs; when vertically soldered, the module has 5 available GPIOs. The module supports UART, SPI, I2C, PWM, etc.

Feature
32-bit RISC-V MCU , 2.4 GHz Wi-Fi and BT 5 (LE)
32-bit RISC-V single-core processor that operates at up to 120 MHz
State-of-the-art power and RF performance
576 KB ROM, 272 KB SRAM (16 KB for cache) on the chip
14 programmable GPIOs: SPI, UART, I2C, LED PWM controller, General DMA controller (GDMA), SAR ADC, Temperature sensor

Applications

• Industrial Automation

• Industrial robot

• Industrial field bus

• Health Care

• Health monitor

• Baby monitor

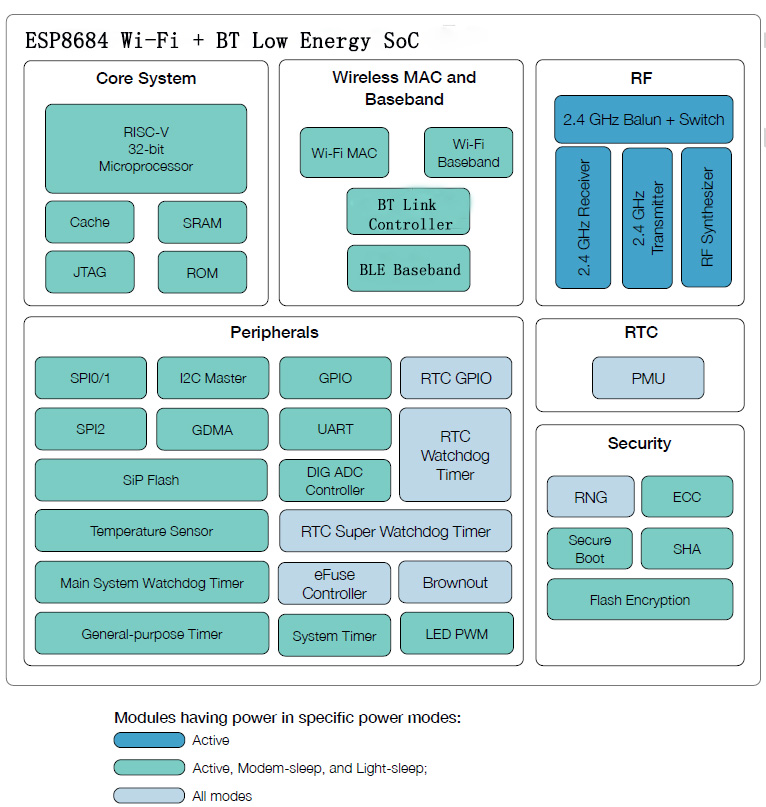

Module Schematics
