| Categories | AISG Connector |
|---|---|
| Brand Name: | RITIAN |
| Model Number: | M16 Aviation plug connector |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 100 PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Delivery Time: | 5-8 days |
| Packaging Details: | neutral package |
| Model: | M16 cable connector |
| Gender: | Male / Female |
| rated current: | 7A for 2/3 pin, 6A for 4/5 pin, 3A for 12/14/19 pin, |
| rated voltage: | 250V for 2/3/4/5 pin, 60V for 5/6/7/8/12/14/19/24pin |
| orientation: | Straight / Right Angle |
| mounting type: | PCB Mount / Panel Mount / Cable |
| insulation resistance: | ≥100 MΩ |
| IP rating: | IP67 / IP68 |
| Termination: | Screw-joint / Solder Type |
| Application: | Petroleum / Chemical Industry / Iron and Steel / Electricity |
| Company Info. |
| Dongguan sun Communication Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

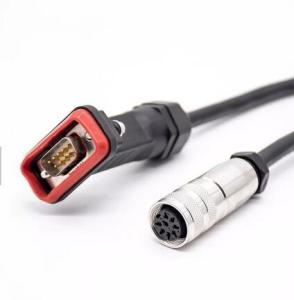

AISG connector RRU to RCU RET AISG Control Cable to DB9 connector 5m assembly cable connector
Product Fetures
1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;
2.Resistant to welding spark,continually twist ;
3.Resistant to oil,coolant ,lubricant and emulsion;
4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;
5.Shield and un-shield Version Available with metal or plastic housing;
6.Meet IP67/IP68 waterproof requirements;
7.Temperature Range:-25℃ ~ +85℃;
Aisg Cable assembly
With a rugged metal housing and environmental protection rating of
IP67 when mated, this robust DIN connector range is an ideal
solution for ensuring that power and signal connections are not
compromised in harsh environments and industrial applications.
High quality AISG equivalent as Binder eries 423, 723 and 425
family of connectors are rugged, high-performance circular
connectors with excellent EMI shielding and IP67. Ideal choice for
severe industrial and commercial applications. Panel-mounted
receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
| Technology parameter | |||||||||||||
| NO.of contacts | 2 | 3 | 4 | 5 | 5A | 6 | 7 | 8 | 12 | 14 | 16 | 19 | 24 |
| Rated Current/Voltage | 7A-200V | 7A-200V | 7A-200V | 6A-200V | 5A-60V | 5A-200V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V |
| Operation Limit Voltage(AC.V.rms) | 250 | 250 | 250 | 250 | 125 | 250 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Withstanding Voltage(AC.V.rms) l Minute | 1500 | 1500 | 1500 | 500 | 1500 | 1500 | 800 | 500 | 500 | 500 | 500 | 500 | 500 |
Insulation Resistance (MΩ MIN.) at DC 500V | 1500 | 1500 | 1500 | 1500 | 1000 | 1500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Contact Resistance (MΩ MAX.) AT DC 1A | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 | 10 | 12 |
| Solder Cup Mouth Aperture | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.6 |
| Solder Inter Diameter | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 0.5 |
|
