| Brand Name: | TICO |
| Model Number: | STC-TM-300 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15~ 20 working days |
| Packaging Details: | Wood Packing |
| Product Name: | Battery Electrode Film Coating Machine |
| Max coating stroke length: | 300mm adjustable , customizable |
| Doctor blade: | 100mm fixed width as standard, ajustable width optional |
| Coating thickness range: | 0~5mm adjustable |
| Vacuum pump: | Internal |
| Coating speed: | 0~100mm/s adjustable |
| Company Info. |
| Shenzhen TICO Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

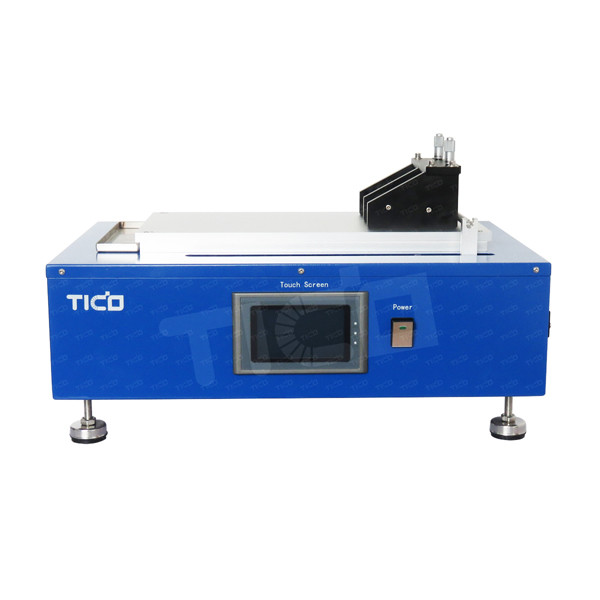

Compact Desktop Film Coating Machine with Adjustable Coating Stroke
Brief Introduction
STC-TM-300 is a compact tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. The coating stroke length can be set. It is compact size, perfect for laboratory research.
Features
● PLC touch screen control, with easy and convenient setting of each parameter.
● Vacuum chuck enable placement or removal of substrates such as copper and aluminum foils.
● The coating length is 0~300mm adjustable.
● Standard equipped with doctor blade, high coating precision and adjustable coating thickness.
● Small size can save space.
● The metal plate adopts geometric design, and the overall appearance is simple and exquisite.
Technical Parameter
| Model | STC-TM-300 |
Voltage | AC220V±10%, 50Hz |
| Power | 0.5KW |
Coating stroke | 300mm adjustable ( customized size is available ) |
Doctor blade | 100, 150mm width is optional, fixed width and adjustable width is optional |
| Coating speed | 0~100mm/s adjustable |
Doctor blade thickness | 0~5mm adjustable |
| Coating accuracy | ±3μm |
Vacuum chuck | L415 * W200 * H23mm |
| Vacuum chuck | Aluminum flat chuck with vacuum for convenient suction of the substrate |
Vacuum pump | Internal |
Dimension | L550 * W310 * H330mm |
Weight | 50kg |
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab
research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different
requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch,
which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site
installation service.
|
