| Categories | Sheet Metal Profiling Machine |
|---|---|
| Brand Name: | DLY |
| Model Number: | Z profile machine |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30sets/month |
| Delivery Time: | 40 days |
| Packaging Details: | naked or wooden |
| name: | Sheet Metal Profiling Machine |
| Power: | 15kw |
| Weight: | 4T |
| Shafts Diameter: | 70mm/75mm/80mm |
| voltage: | 380V/220V/480V |
| Dimension(L*W*H): | 9000*1500*1600mm |
| Company Info. |
| DLY Metal Roofing Machine |
| View Contact Details |
| Product List |

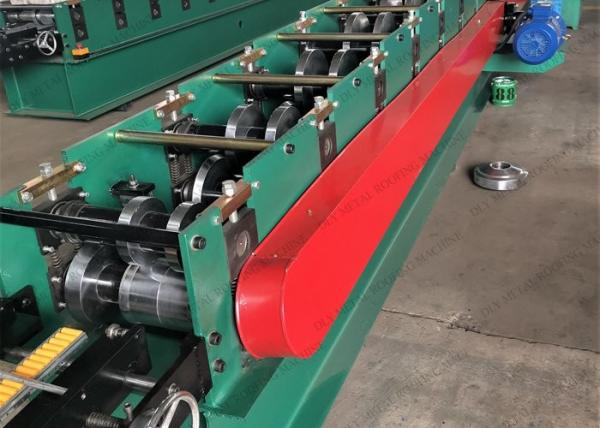

PLC Sheet Metal Profiling Machine 15KW with 10m speed roll forming machine
1. Description of Sheet Metal Profiling Machine
2. Specifications of Sheet Metal Profiling Machine
| Machine details | |
| Roller material | Forming rollers adopt 45# steel,after balance correction.And
surface of rollers is grinded,polished and hard chromium plating with high precision.To ensure the smoothness of the chamfer, reduce the friction between the plate and rollers, and reduce the damage of the paint surface of the plate. |
| Shaft material | Shafts of forming adopt 45# steel,after balance correction,are
grinded,polished with high precision. Stainless steel dust shield is mounted on the outside of the bearings. |
| Diameter of shaft | 72mm or as your requirement |
| Main frame | 400 H steel |
| Productivity | 20-25m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Controlling system | famous PLC computer control |
| Material of cutting table | Cr 12 mould steel with quenched treatment |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
3. Installation of Sheet Metal Profiling Machine
4. details of Sheet Metal Profiling Machine




|   |
