2.5KW Automatic Form Fill Seal Machine Horizontal Flow Wrap Packaging Machine

Categories Forming Filling Sealing Machine
Place of Origin: Qingdao China
Brand Name: SANWEIHE
Model Number: SWF-590
MOQ: 1set
Price: negotiable
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Delivery Time: 20 working days
Packaging Details: Wooden Box Packaging
Packaging Material: Film
Speed: 30-100packs/Min
Keywords: Packing Machine
Packet Type: Pillow Shape Bag Packing
Transport Package: Wooden Box Packing
Trademark: sanweihe
Origin: Qingdao China
HS Code: 8422303090
Automatic Grade: Semi-Automatic
Application: Cosmetics, Drinks, Skin Care Products
Type: Forming Filling Sealing Machine
Forming Species: Bag Packing
Function: wrap Seal
Driven Type: Electric
Customization: Available | Customized Request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

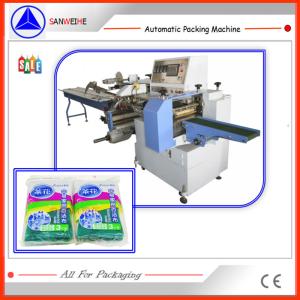

2.5KW Automatic Form Fill Seal Machine Horizontal Flow Wrap Packaging Machine


Swf-590 Horizontal Type Form-Fill-Seal Flow Wrapping Packing Machinery


For this packing machinery, film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical Form-Fill-Seal type Packing Machinery. The packing machinery is stable and accurate.


Parameters of the Pillow Type Automatic Packing Machine
Max width of film450mm
Packaging rangeL:53~300mm, W:20~100mm, H:5~70mm
Packing speed30-180Bags/min
Category of filmHeat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor1.5KW
Power of electrical2.5KW
Total power4.6KW single phase 220V
Overall dimension L×W×H5700×960mm×1480mm
WeightAbout 1000kg


Swf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing MachinerySwf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing Machinery
Application of Form-fill-seal Packing machinery:

Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Features of Pillow Type Automatic form-fill-seal packing Machinery :
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine
Swf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing MachinerySwf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing Machinery
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine
Swf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing MachinerySwf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing Machinery

Swf-450 Scouring Pad Form-Fill-Seal Horizontal Type Flow Wrapping Packing Machinery
