| Categories | Dynamic Balancing Machine |
|---|---|
| Brand Name: | lixian |
| Model Number: | HZ-9734 |
| Certification: | ce |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiate |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | negotiate |
| Delivery Time: | 7 days |
| Packaging Details: | wood |
| Max Mass of Workpiece(kg): | 50 |
| Distance between two support seats: | 80-800 |
| Motor Power (kw): | 0.75 |
| Max Diameter of Workpiece(mm: | Φ700 |
| Bearing diameter range: | Φ8~80 |
| Speed ( the diameter of workpiece transmission : 100mm): | 225 + electrodeless speed |
| Minimum attainable residual unevenness: | ≤0.5g.mm/kg |

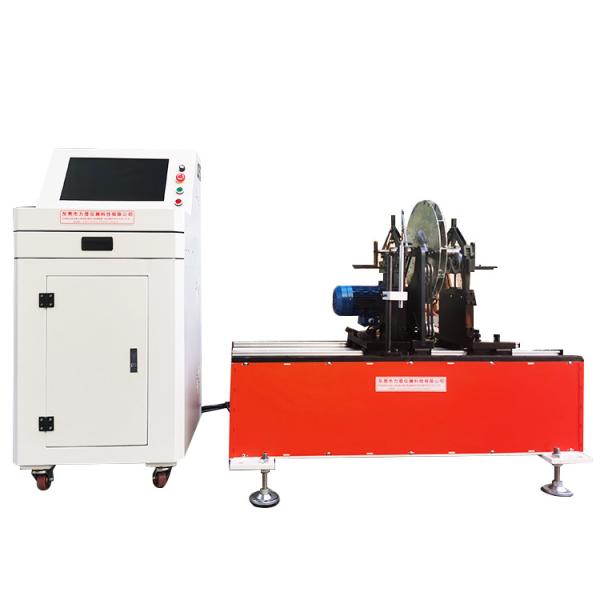

225 + electrodeless speed 50kg Hard bearing ring drives balancing machine
Overview
50kg Single-sided Vertical Ring Belt Dynamic Balancing Machine is mainly a hard support balancing machine composed of high-precision mechanical part and advanced electrical part. The training product of this department is one of the single-sided vertical hard support balancing machines independently developed, designed and manufactured by our company according to the core technology at home and abroad. It is an advanced model in the world at present.
Features
The ring belt balancing machine adopts advanced electrical
measurement system, with diversified measurement methods, dynamic
and static balance, up to 10 support modes, and can be flexibly
customized for weight addition and removal, forward and reverse
rotation. High measurement accuracy, multiple calibration
coefficient combination, automatic adjustment of system
sensitivity, no jump in gear shift, dual filtering of software and
hardware, high-speed data compression, more stable, accurate and
faster measurement
Technical Parameters
| Model | HZ-9734 |
| Max Mass of Workpiece(kg) | 50 |
| Max Diameter of Workpiece(mm) | Φ700 |
| Distance between two support seats | 80-800 |
| Bearing diameter range | Φ8~80 |
| Speed ( the diameter of workpiece transmission : 100mm) | 225 + electrodeless speed |
| Diameter range of circular belt drive | Φ18~200 |
| Motor power | 0.75 |
| Minimum attainable residual unevenness | ≤0.5g.mm/kg |
| Note: The technical parameters of the above series of balancing machines are for reference only. The specific parameters and quotations need to be determined according to the actual situation of the rotor of the user's workpiece, and can also be customized. | |
Application scope:
The ring belt balancing machine is widely used in the balance
correction of rotating workpieces such as rotors, impellers,
crankshafts, rollers and shafts of all kinds of small and
medium-sized motors. The ring belt drive ensures the balance
quality and accuracy of the workpiece, and has the characteristics
of convenient loading and unloading, fast start-up and high work
efficiency.
|
