| Categories | HDMI TFT LCD Display |
|---|---|
| Brand Name: | SAEF |
| Model Number: | SFRA700H-800480ACT-01 |
| Certification: | ISO9001 / ISO14000 |
| Place of Origin: | ShenZhen / China |
| MOQ: | 3 pcs |
| Price: | Negotiable based on order lot quantity |
| Payment Terms: | L/C, , T/T, Western Union |
| Supply Ability: | 3000K pcs per month |
| Delivery Time: | 3-5 weeks |
| Packaging Details: | Standard Exportation Package |
| Keywords: | 7 inch HDMI display |
| Resolution: | 800*480 |
| CTP Interface: | USB to IIC |
| Compatible with: | Raspberry Pi、BB Black、Banana Pi |
| Support: | HDMI1.3、HDMI1.4、HDCP1.4、HDCP2.2 |
| Surface Luminance: | 300 cd/m2 - 1000 cd/m2 |
| Touch screen: | CTP( Capacitive Touch Screen) |
| LED lifetime: | 40,000 hours |
| Operating Temp.: | –20℃ to +70℃ |
| Compliance: | REACH & RoHS Compliant |
| Company Info. |
| Shenzhen Saef Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
HDMI 7 inch Display, 7 inch PCAP TFT Display
SFRA700H-800480ACT-01 is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1. 4.3 inch IPS screen, hardware resolution of 800×480 dots
resolution.
2. Capacitive 5-point touch control.
3. Tempered glass capacitive touch panel, hardness of >=6H.
4. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 requires the
optional adapter DSI-Cable-15cm.
5. Drive the LCD directly through the Raspberry Pi's DSI interface
with refresh rates up to 60Hz.
6. When used with Raspberry Pi, Raspberry Pi OS / Ubuntu / Kali and
Retropie are supported, drive-free.
7. Support for controlling backlight brightness through software.
| Keywords: | 7 Inch HDMI Display | Resolution: | 800*480 |
|---|---|---|---|
| CTP Interface: | USB To IIC | Compatible With: | Raspberry Pi,BB Black,Banana Pi |
| Support: | HDMI1.3,HDMI1.4,HDCP1.4,HDCP2.2 | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Version | 01 | ||
| Signal supported | HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard | input | HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch interface | 6 pin | FPC-0.5-6PIN (horizontal) | |
| Display interface | RGB 50 pin | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V(+/-0.5V) | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | ＜0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER,MENU,UP,DOWN,EXIT | ||

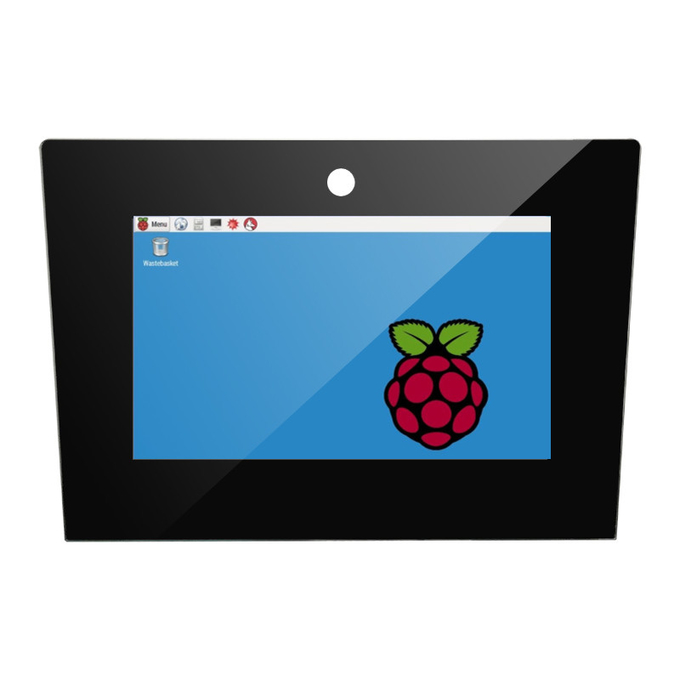

HDMI 7 inch Display, 7 inch PCAP TFT Display Product Image
HDMI interface pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |
USB( 5V ) pin definition
| 1 | VCC |
| 2 | NC |
| 3 | NC |
| 4 | NC |
| 5 | GND |
USB TP Pin definition
| 1 | VCC |
| 2 | D- |
| 3 | D+ |
| 4 | NC |
| 5 | GND |
Speaker interface Pin Definition
| 1 | ROUT+ |
| 2 | ROUT- |
| 3 | LOUT- |
| 4 | LOUT+ |
6,LCD pin definition
| 1 | VLED+ | Power for LED backlight (Anode) |
| 2 | VLED+ | Power for LED backlight (Anode) |
| 3 | VLED- | Power for LED backlight (Cathode) |
| 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data(LSB) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data(LSB) |
| 28 | R7 | Red data(MSB) |
| 29 | R6 | Red data |
| 30 | R5 | Red data |
| 31 | R4 | Red data |
| 32 | R3 | Red data |
| 33 | R2 | Red data |
| 34 | R1 | Red data |
| 35 | R0 | Red data(LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Touch panel Pin Definition
| 1 | VDD | |
| 2 | GND | |
| 3 | TP-INT | |
| 4 | TP-RST | |
| 5 | TP-SCL | |
| 6 | TP-SDA |
|
