| Categories | Epoxy Coated Wire Mesh |
|---|---|
| Brand Name: | Xingkuan Tech |
| Model Number: | Razor Ribbon Flat Wrap coils for secure safe (Non-Flanged, Wire Reinforced) |
| Certification: | Bv ,sgs , ce , Iso |
| Place of Origin: | Hebei ,China |
| MOQ: | 1 roll |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 Square Meters per Day , lots of stock |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Paper tube inside and waterproof paper outside, then put into plywood pallets. |
| Item: | Epoxy coated wire mesh hydraulic air filters support layer 18*14 mesh |
| Material: | Superior steel wire, stainless steel wire, aluminum alloy wire |
| Mesh: | 14X14, 16X14,, 16X16, 18X16, 18X18, 18X14, 20X20 |
| Wire diameter: | 0.1-0.3mm |
| Roll width: | 50mm-1300mm |
| Roll Length: | 10-400m |
| Color: | Black ,Gray ,White ,etc |
| Applications: | support layer used in hydraulic or air filters |

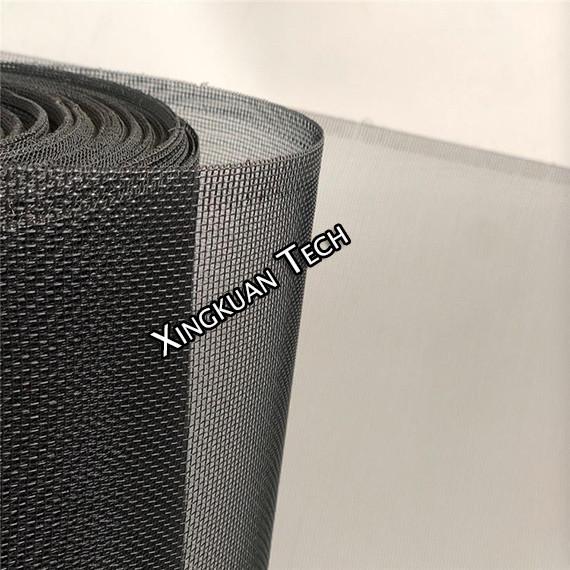

Black Epoxy coated wire mesh hydraulic air filters support layer 18*14 mesh
Descriptions :
Anoxic annealed low carbon steel wire, stainless steel wire,
aluminum alloy wire weave epoxy resin coating, weave plain
weave, epoxy resin coating, for a variety of color choice.it is
also called Epoxy Coated Wire Mesh,Epoxy Coated Screen,Epoxy coated
air filter mesh.
Quick details& Specifications :
Black epoxy coating is standard, but we can offer a variety of coating colors. Some common specifications include 18×14 Mesh .007”, 18×10 Mesh .007”, and 18×16 Mesh .011”. We can offer our epoxy coated wire cloth in rolls in varying widths and lengths up to 500 feet or more.
| Material : | High quality low carbon steel wire, SS wire, aluminum alloy wire. |
| Weaving pattern: | Plain Weave |
| Mesh : | 12x10 ,14x14 ,16×16, 18×16, 18×18, 18×14, 26x 22,24×24,30×30 |
| Diameter : | BWG30, 31, 32, 33, 34, 35, 36, 37, 38, 39.(0.1-0.3mm) |
| Roll Width : | 0.58 m, 0.754 m, 0.876 m, 0.965 m, 1.014 m,1.05 m,1.1 m, 1.22 m,1.25m etc. |
| Roll Length | 10m-400m |
Applications :
Epoxy Coated Wire Mesh products are mainly used in filter element for support layer .


|   |
