| Categories | Toilet Paper Rewinding Machine |
|---|---|
| Place of Origin: | Fujian, China |
| Brand Name: | EAST |
| Certification: | ISO9001 |
| Packaging Details: | wooden case |
| MOQ: | 1 SET |
| Price: | $39,000.00/set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20sets per month |
| Delivery Time: | 35-40days |
| Model Number: | 2600mm |
| Product Type: | Toilet and Kitchen Tissue |
| Voltage: | 380V 50Hz |
| Power: | 14kw |
| Dimension(L*W*H): | 6.8*4*2m |
| Weight: | 3.8-9t |
| Warranty: | 2 years |
| Production Capacity: | 180-300m/min |
| Video outgoing-inspection: | Provided |
| Applicable roll quantity: | 12~16GSM(2ply/3 ply)tissue paper |

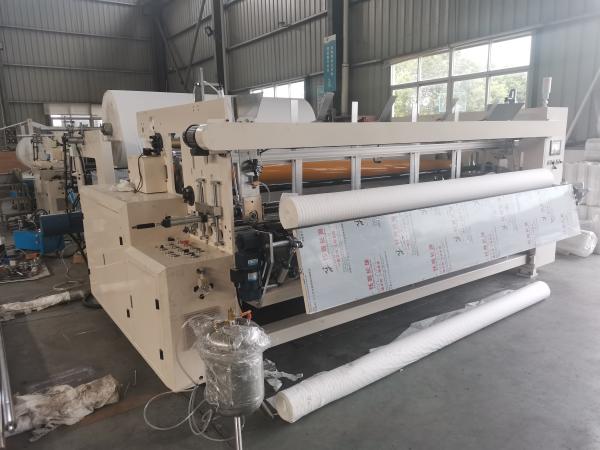

2600mm Glue and Embossing Rewinding Toilet Tissue Paper Making Machine
Main Function Characteristics
1,Use of inflable shaft winding ,so that accuate positioning is simple paper tube.
2,Edge pressing system:Using steel on steel blank pressing ,independent cylinder adjustment to facilitate.adjustment to each layer of paper is not hierarchical.
3.Automatic core loading and replacing.The logs are automatically pushed out after finishing winding and then start winding again.The cores can be adjusted to any size of cores within one minute
4,Horizontal style unwind stander ,pneumatic paper loading unit dispense artificially handing.
5.Deliver paper with pneumatic wide belt,with separte tension control device in each roll of raw paper.
6,All the transmission between main machine,embossing,edge embossing,lamination and back-stand are separating motors driving,it doesn’t need the chain,chain wheels ,gear box transmission can help to cut down the machine prepare and easy to adjust.
Equipment Parameter
| Control Unit | Electrical control,Scheider Control buttons,Taiwan Proximity switch |
| Maximum material width | 2600mm |
| Maximum material diameter | 1100mm |
| Maximum rewinding diameter | 300mm |
| Vacuum control | 1 set roots vacuum pump of 22KW(Taiwan) |
| Pneumatic system | Air pressure:> 4kg/cm2 (provided by buyer) |
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: Generally it is 40-60 working days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
|
