| Categories | Material Transfer Cart |
|---|---|
| Brand Name: | Electric Transfer Trolley |
| Model Number: | Electric Transfer Trolley |
| Certification: | CE ISO SGS |
| Place of Origin: | China(mainland) |
| MOQ: | 1 set |
| Price: | USD 2000~7500 set |
| Supply Ability: | 100 sets month |
| Delivery Time: | 20 work days after received balance payment |
| Packaging Details: | trap and wooden case |
| Product Name: | Electric Transfer Trolley |
| Capacity: | 1-300T |
| Dimension: | Customized as Practical Needs |
| Color: | Customized |
| Application: | Industrial Filed |
| Feature: | Easy Operation |
| Certificates: | CE ISO SGS |

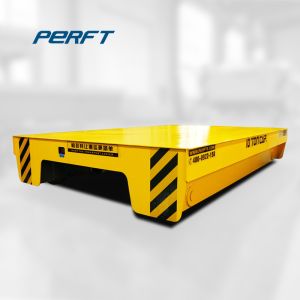

Our coil transfer cart are used to transport steel coils and pipes
for metal industry. This coil transfer Cars are designed to be an
extremely cost effective, safe and flexible load moving
alternative.
The steel coil rail car is also called a heavy transporter,
headless transporter or self-propelled modular transporter. Our
coil transfer carts are specially designed for coil, pipe and other
round material transportation. When the goods are loaded, we can
make sure the car moves safely and the goods are in a very safe
condition.
Application about cart
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
|
