| Categories | Cleanroom Pass Box |
|---|---|
| Brand Name: | Fairtech |
| Model Number: | FT009 |
| Certification: | CE,Rosh |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | USD300-500/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000000pcs per Week |
| Delivery Time: | 3-5days |
| Packaging Details: | 1. Individual Package 2. Carton Package 3. Pallet Package |
| Keywords: | Modular Clean Room Powder Coated Stainless Steel Pass Through Box |
| Door: | Two-door for large angle square window |
| Window: | Double hollow toughened glass observation window |
| Door Lock: | Mechanically or electronically interlocked |
| Efficiency: | 99.99~99.995% |
| Tightness: | EVA sealing to ensure the tightness |
| Noise: | <65dBA |
| Power supply: | 220V,50Hz |

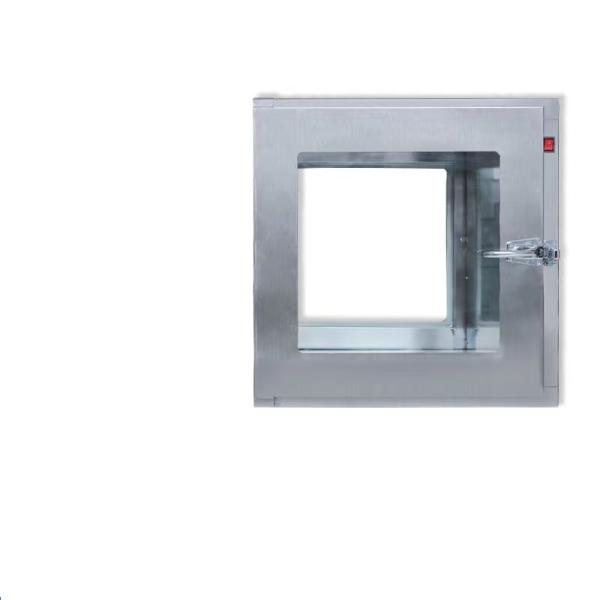

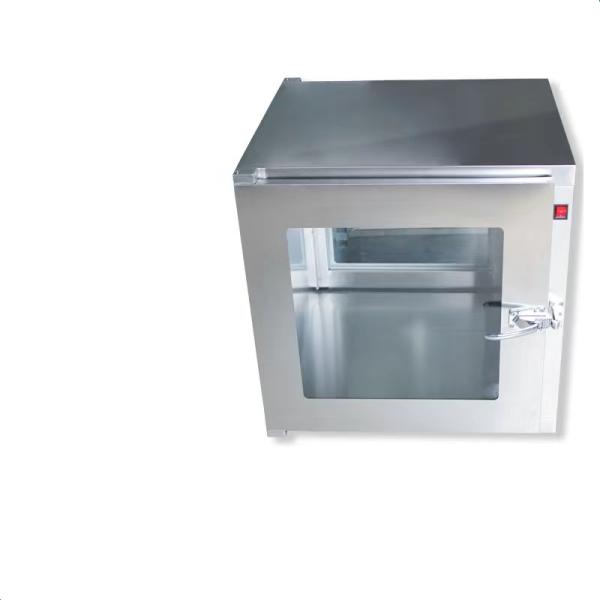

Pass Box Description:
Pass box is an auxiliary device for the clean room, which is mainly
used to pass small items among clean areas and between clean area
and non-clean area. In this way, clean room door opening times can
be reduced, which can it can minimum the door opening times of the
clean room, which can minimize the pollution level in the clean
room.
Pass box is made of stainless steel plate which is neat and clean.
The two doors are interlocked to prevent cross-contamination
effectively. It is equipped with electronic or equipment interlock
unit and ultraviolet germicidal lamp.
| Model | Working Size (mm) W*D*H | External Size (mm) W*D*H | Material | |||
| Mechanical Interlocker | Electronic Interlocker | |||||
| Common Type | Clean Type | Common Type | Clean Type | |||
| JCC-500 | 500*500*500 | 620*560*580 | 620*560*990 | 660*560*580 | 660*560*990 | Stainless Steel |
| JCC-600 | 600*600*600 | 720*660*680 | 720*660*1090 | 760*660*680 | 760*660*1090 | |
| JCC-800 | 800*800*800 | 920*860*880 | 920*860*1290 | 960*860*880 | 960*860*1290 | |
