| Categories | Microwave Motion Sensor Switch |
|---|---|
| Brand Name: | Hynall |
| Model Number: | HNS205 |
| Certification: | RED, FCC, RoHS, ETL |
| Place of Origin: | Shenzhen, China |
| MOQ: | 300pcs |
| Price: | To be negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20,000pcs / month |
| Delivery Time: | 3~4 weeks for bulk orders |
| Packaging Details: | Bubble bag + carton. (color box or blister package also available on request) |
| Operating voltage: | 120~277V AC |
| High frequency: | 5.8GHz |
| Usage: | ceiling light, linear light, LED panel, shoebox etc. |
| Color: | White |
| Size / Dimension: | 102*45*26.5mm |
| Function: | 1-10v dimming and daylight monitoring |
| Company Info. |
| Hynall Intelligent Control Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

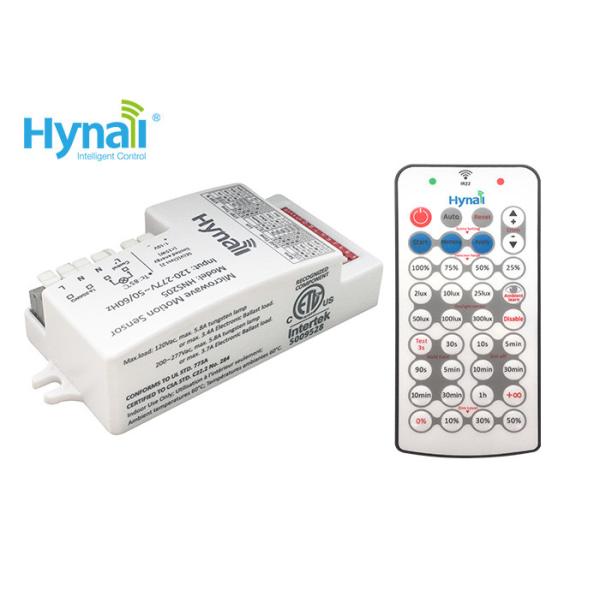

Model name: HNS205 Microwave motion sensor switch with detached head and tri-level dimming control
Used together with ordinary 1~10v dimmable driver, achieve tri-level dimming control.
Features:
| Hide the sensor body and configure the small detached antenna head only. |
| 400W@120V AC, 800W@ 200-277V AC(capacitive) |
| Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay. |
| Dual-processor technology, real built-in daylight sensor. |
| DIP switch + IR Remote control 2 channels setting. |
| RJ11 connection between the sensor body and antenna head, easy plug. |
