Practical TFT DRO For Small Lathe , Resolution 0.005mm 2 Axis Digital Readout

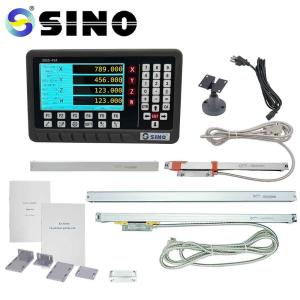

SINO 2 axes metal TFT mini lathe machine digital display unit SDS5-4VA with two mini linear grating scales

SDS5-4VA is a colorful TFT digital unit that mounting on the electric box by a special base.

The digital display unit is special for mini lathe machine positioning.

Two super mini linear grating scales KA-500 or KA-200 are good for small or narrow installation propose.

Package list:

Functions for lathe machine:

1. Radius / Diameter Conversion
2. Tool Diameter Compensation
3. Taper Measurement
4. 200 Tools Storeroom

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.

It's a sample that KA-500 linear encoder on axis X of lathe:
