0.13mm Monofilament Extrusion Line For Air Conditioning Dust Filter

(1) Screw diameter: 70mm, Screw speed: 0～80 rpm.

(2) L:D: 30:1, Screw material: 38CrMoALA.

(3) Pressure automatic feedback system.

(4) Melt pump 30cc 1 set.

(6) Round spinneret: 1 set.

2. Quenching tank: 1 set

3. Seven roller stretching unit A: 1 set

(1) Seven variable diameter rollers.

(2) Reducer is from Zhejiang Tongli.

(3) Working height: 1200mm

4. Hot water tank: 1 set

(1) Tank size: 4000mm

(2) Water removal device 1 set

5. Seven roller stretching unit B: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Reducer is from Zhejiang Tongli.

(3) Working height: 1200mm

6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Heating power 23kw×2

7. Seven roller stretching unit C: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Reducer is from Zhejiang Tongli.

(3) Working height: 1200mm

8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Heating power 23kw×2

9. Seven roller stretching unit D: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Reducer is from Zhejiang Tongli.

(3) Working height: 1200mm

10. Lubricating system: 1 set

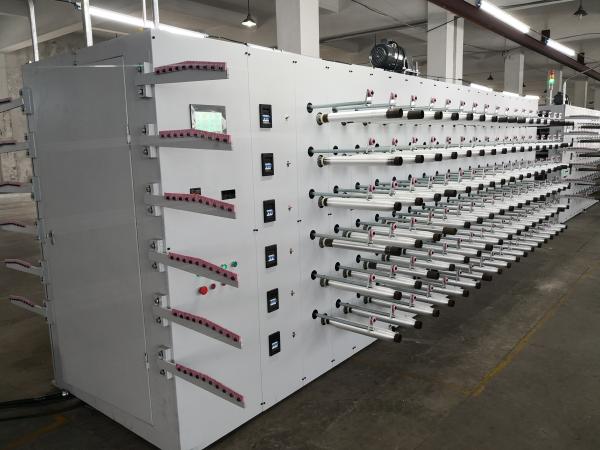

11. Spindle winder: 252 spindles

Specification:

Picture:
